BPD‑5xx Series

Low Voltage (SmartDIM) Daylight Sensor

The BPD type of the TRANS‑LUX sensor family are low voltage daylight sensors designed to provide isolated dry contact with 0‑10V output for on/off switching or continuous dimming control. The BPD-5xx series comes with typical on/off control or SmartDIM continuous dimming control.

All TRANS‑LUX sensors are available with various mounting options.





  • Digital data control ambient light sensor
  • Human‑eye matching spectral response
  • Sensor operation LED indicator built‑in
  • Isolated dry contact for switching control
  • 12‑24 VDC low voltage power operation
  • Available with variety of mounting options
    Models Tech Power Output Setting Wiring Control

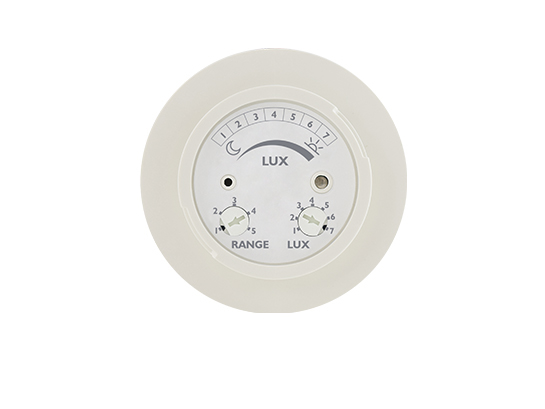

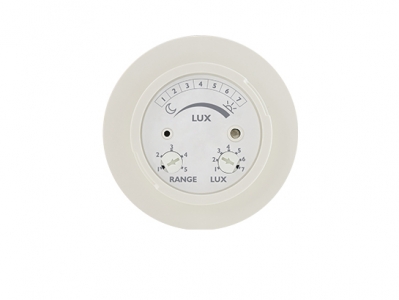

    BPD‑500S a ALS 12‑24 VDC IDC+AO Accu‑Set pot Wire leads IDC for on/off control, and AO for BMS control
    BPD‑510S a ALS 12‑24 VDC IDC+AO Accu‑Set pot Terminal block IDC for on/off control, and AO for BMS control

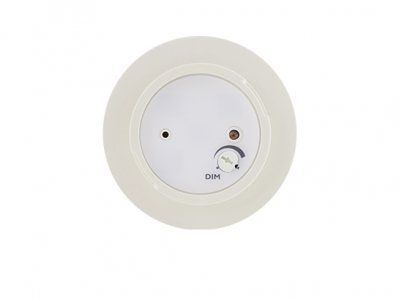

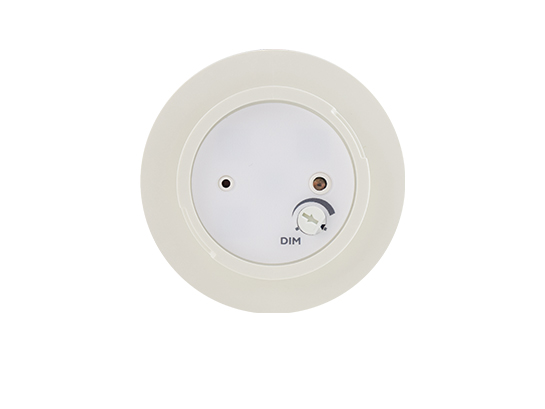

    BPD‑502S a ALS 12‑24 VDC IDC+AO Accu‑Set pot Wire leads IDC for on/off switching, and AO for SmartDIM control
    BPD‑512S a ALS 12‑24 VDC IDC+AO Accu‑Set pot Terminal block IDC for on/off switching, and AO for SmartDIM control
     a - mount code
LEGENDS:
ALS - Ambient light sensor     IDC - Isolated dry contact     AO - Analog output (0‑10V)
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500

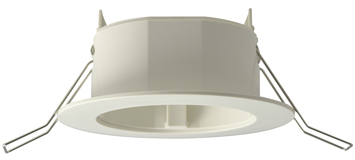

Ceiling Recess R RMB‑500


Product Information
BPD-500 Datasheet
BPD-500 Installation Instruction
BPD-510 Datasheet
BPD-510 Installation Instruction
BPD-502 Datasheet
BPD-502 Installation Instruction
BPD-512 Datasheet
BPD-512 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Design tools
CAD Symbols
