LMD‑5xx Series

Line Voltage Bi‑Level Occupancy Sensor

The LMD type of the TRANS‑HFD sensor family are line voltage occupancy sensors with 0‑10V output for bi‑level control. These sensors employ an advanced High Frequency Doppler (HFD) sensing technology to provide superior sensing performance of minor motions, such as typing, writing, or reading.

All TRANS‑HFD sensors are available with various mounting options.





  • High Frequency Doppler sensing technology
  • 120/277VAC universal line voltage powered
  • Hybrid switching for controlling loads with HIC
  • 0‑10V output for bi‑level dimming control
  • Accu-Set potentiometer for quick and easy setting
  • 4 levels of HFD sensitivity setting programmable
  • 4 control modes selectable via DIP switch setting
  • Ambient light sensor to inhibit unneeded lighting
  • Available with variety of mounting options
    Models Tech Power Output Setting Wiring Switching Control

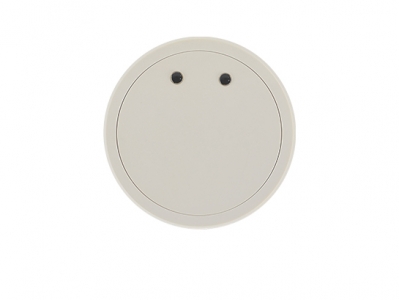

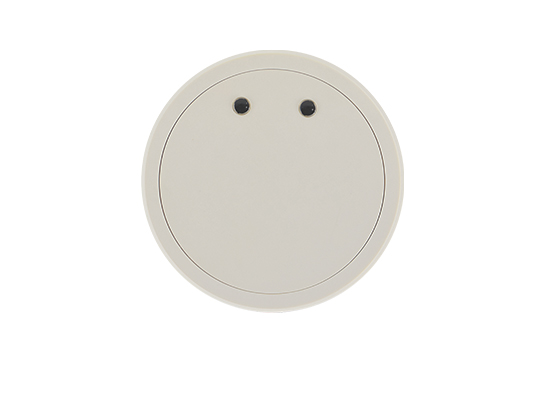

    LMD‑509S a HFD 120/277 VAC SLV+AO Accu‑Set pot
DIP switch
Wire leads Hybrid Multi‑mode, bi‑level StepDIM control
     a - mount code
LEGENDS:
HFD - High Frequency Doppler     SLV - Switched line voltage     AO - Analog output (0‑)
Mounting Options Code Bracket #

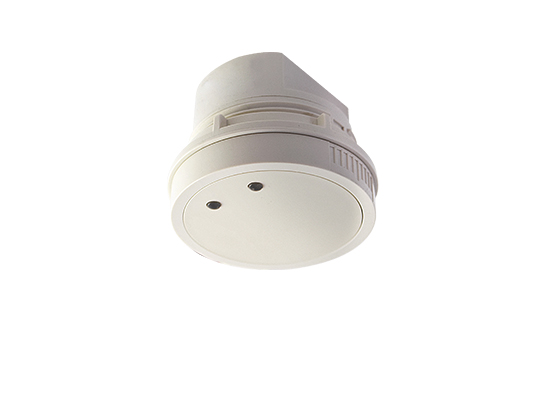

Fixture Integrated F --
IP‑66 Fixture Integrated W --

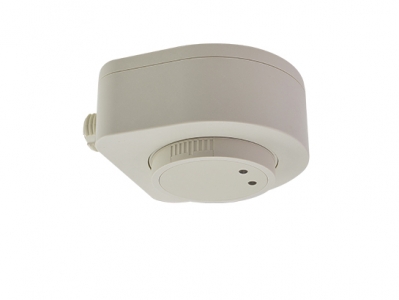

Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500

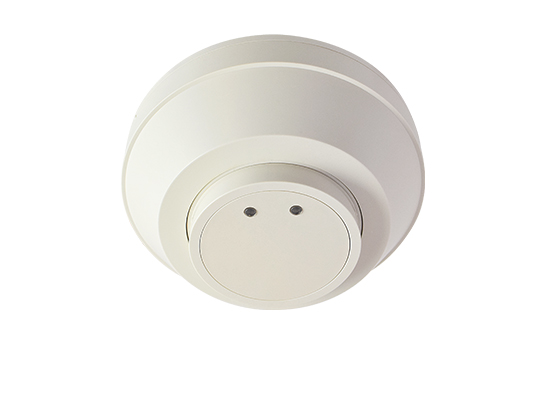

Ceiling Surface S SMB‑500

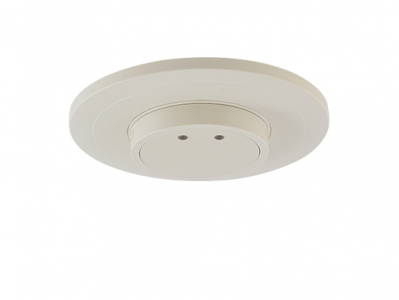

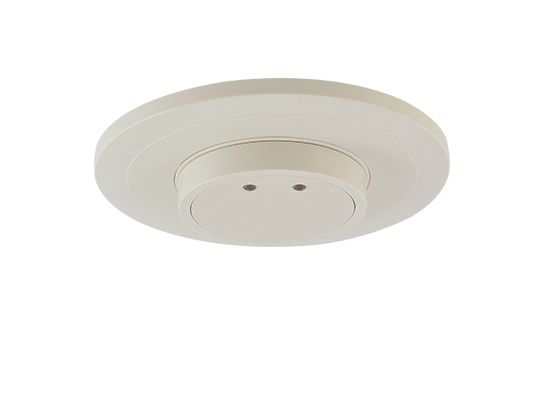

Junction Box C CMB‑500

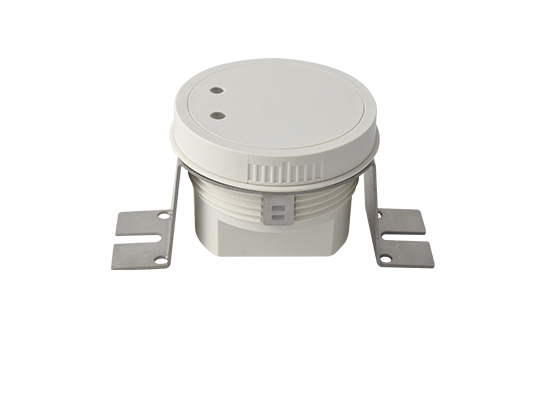

Fixture Internal I IMB‑500


Product Information
LMD-509 Datasheet
LMD-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Design tools
CAD Symbols

  • High Frequency Doppler sensing technology
  • 120/277VAC universal line voltage powered
  • Hybrid switching for controlling loads with HIC
  • 0‑10V output for bi‑level dimming control
  • Accu-Set potentiometer for quick and easy setting
  • 4 levels of HFD sensitivity setting programmable
  • 4 control modes selectable via DIP switch setting
  • Ambient light sensor to inhibit unneeded lighting
  • Available with variety of mounting options

    Models Tech Power Output Setting Wiring Switching Control
    LMD‑509S a HFD 120/277 VAC SLV+AO Accu‑Set pot
DIP switch
Wire leads Hybrid Multi‑mode, bi‑level StepDIM control
     a - mount code
LEGENDS:
HFD - High Frequency Doppler     SLV - Switched line voltage     AO - Analog output (0‑)

Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500
Fixture Internal I IMB‑500



Product Information
LMD-509 Datasheet
LMD-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Design tools
CAD Symbols
