IR-TEC America, Inc.

BOA‑5xx Series

Low Voltage Bi‑Level Occupancy Sensor

The BOA type of the TRANS‑PIR sensor family are low voltage occupancy sensors to provide multi‑mode bi‑level control of LED lighting with 0‑10V analog output.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.





  • Omni‑directional quad element infrared sensor
  • 12‑24 VDC low voltage power supply operation
  • 0-10V analog output for dimming control
  • Walk test and sensor operation LED indicator
  • Accu-Set adjustable settings
  • Push-in locking terminals for easy connection
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Control
    BOA‑516S a b PIR 12‑24 VDC AO Accu‑Set pot
​Rotary DIP
Terminal block Multi‑mode, bi‑level StepDIM control

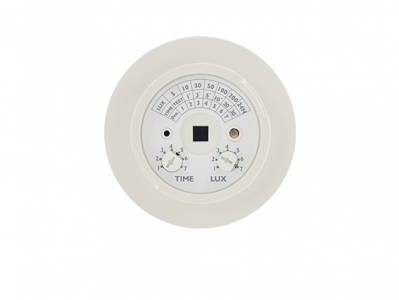

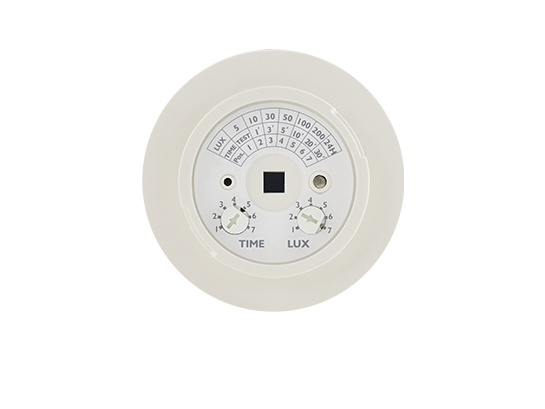

    BOA‑517S a b PIR 12‑24 VDC DO+AO Accu‑Set pot Terminal block Single mode, bi‑level StepDIM control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     DO - Digital output     AO - Analog output (0‑10V)
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500
Ceiling Recess R RMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H


Product Information
BOA-516 Datasheet
BOA-516 Installation Instruction
BOA-517 Datasheet
BOA-517 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
