IR-TEC America, Inc.

BOS‑5xx Series

Low Voltage Occupancy Sensor

The BOS type of the TRANS‑PIR sensor family are low voltage occupancy sensors designed to provide isolated dry contact output for PPU power pack connection or building energy management system (BEMS) control. The BOS-5xx series comes with optional ambient light sensor (ALS) to inhibit the lighting if ambient light levels are higher than required.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.





  • Omni‑directional quad element infrared sensor
  • 12‑24 VAC/DC low voltage power supply
  • Normally open dry contact relay signal output
  • Walk test and sensor operation LED indicator
  • Accu‑Set potentiometer adjustable settings
  • Push‑in locking terminals for easy connection
  • Available with or without photocell sensor
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Cont

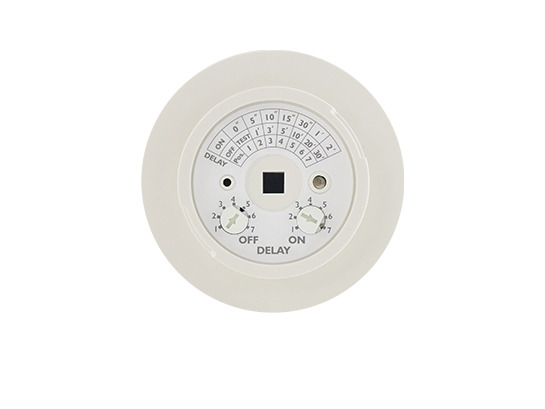

    BOS‑515N a b PIR - 12‑24 VAC/DC IDC Accu‑Set pot Terminal block For occupancy based lighting, HVAC, or BMS control

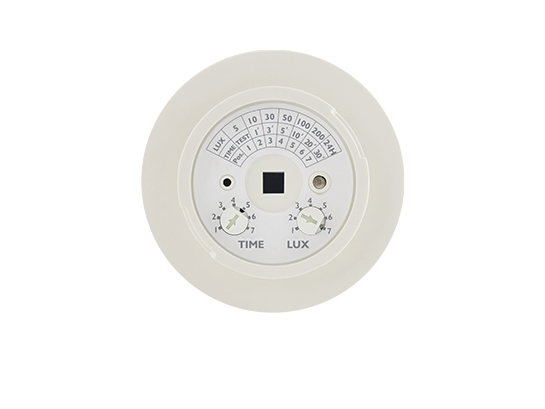

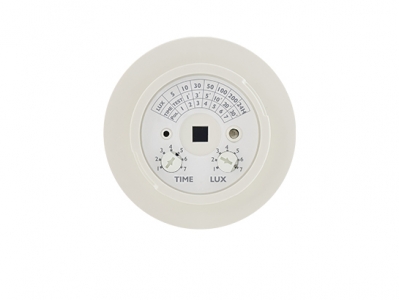

    BOS‑515S a b PIR 12‑24 VAC/DC IDC Accu‑Set pot Terminal block For occupancy based lighting and BMS control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     IDC - Isolated dry contact

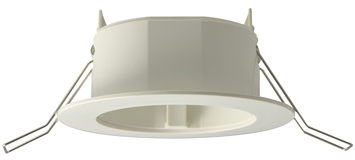

Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500

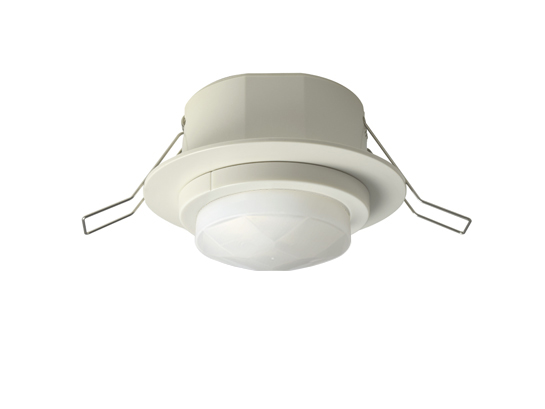

Ceiling Recess R RMB‑500

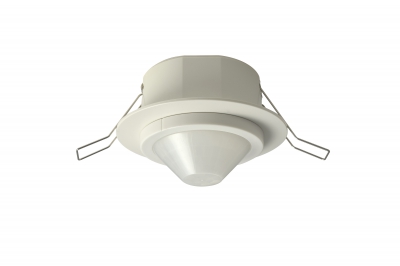

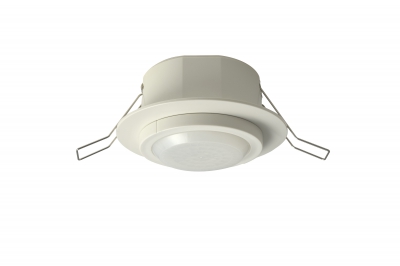

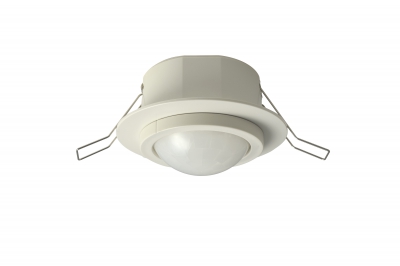

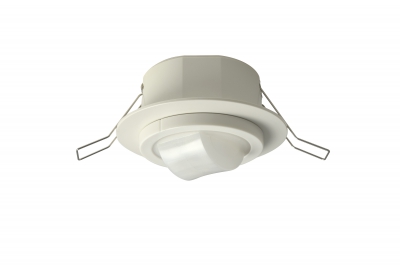

Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H


Product Information
BOS-515 Datasheet
BOS-515 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
