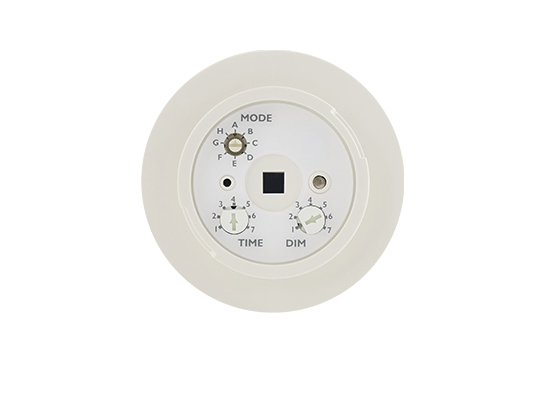

LOD‑5xx Series

Line Voltage Bi‑Level/SmartDIM Occupancy Sensor

The LOD type of the TRANS‑PIR sensor family are line voltage occupancy sensors for direct load switching and bi‑level/SmartDIM control of the lighting powered by 0‑10V dimmable ballast/driver. The LOD‑5xx series comes with optional StepDIM bi‑level or SmartDIM continuous dimming models.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.





  • Omni‑directional quad element infrared sensor
  • 120/277 VAC universal line voltage powered
  • 0-10V output for dimming control
  • Walk test and sensor operation LED indicator
  • Direct lead wires for easy wiring connections
  • 8 rotary DIP switch selectable control modes
  • Accu-Set potentiometer delay time and DIM setting
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Switching Control
    LOD‑500S a b PIR 120/277 VAC SLV+AO Accu‑Set pot
Rotary DIP
Wire leads Zero‑cross Multi‑mode, bi‑level StepDIM control
    LOD‑509S a b PIR 120/277 VAC SLV+AO Accu‑Set pot
​Rotary DIP
Wire leads Hybrid Multi‑mode, Multi‑mode SmartDIM control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H


Product Information
LOD-500 Datasheet
LOD-500 Installation Instruction
LOD-509 Datasheet
LOD-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
