BDS‑7xx Series

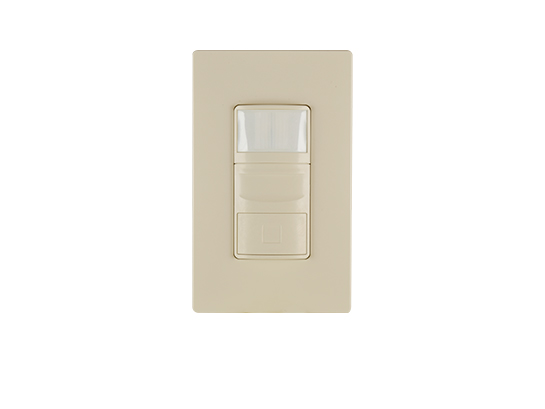

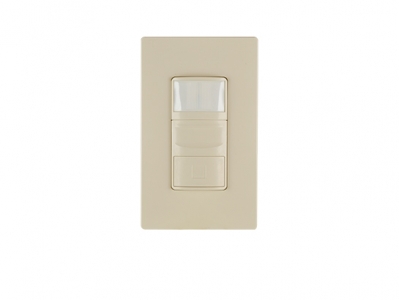

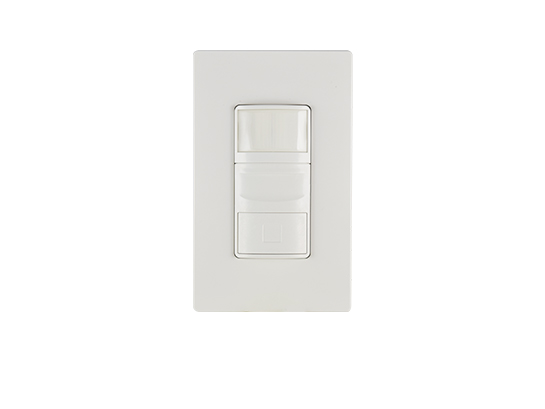

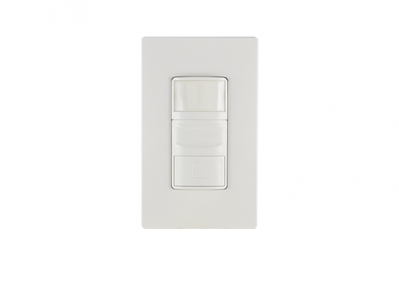

Low Voltage Dual‑Tech Wall Switch Sensor

The BDS type of the WALLSENZR family are dual technology low voltage wall switch sensors designed to provide isolated dry contact output for load switching via the connected PPU or BMS. Sensor setting and control mode can be configured by Accu‑Set pot and DIP switch behind the button cover. This wall switch combines digital Passive Infrared (PIR) and High Frequency Doppler (HFD) sensing technologies into an aesthetically pleasing housing to provide second-to-none occupancy/vacancy sensing based lighting control for all applications.

The BDS-7xx series features models with standard mode settings, or with Multi-way Manual control.





  • Occupancy‑Vacancy sensor changeable control
  • Dual‑tech or single HFD sensing mode switchable
  • Front accessible sensor operation configurations
  • No grid opening - aesthetics pleasing sensor front
  • 4 levels of HFD sensitivity setting programmable
  • 180° field of view with coverage exceeds 100 sq. m.
  • Specialized lens provides vandalism protection
  • Accu‑Set digital potentiometer sensor settings
  • Dry contact relay output for versatile control
  • Screwless wall plate offers high end appearance
  • Low cut back cover provides more wiring space
    Models Tech ALS Power Output PPU Required MMC Control Control
    BDS‑700S a PIR+HFD 12‑24 VDC IDC YES NO All time on/off with ALS override
     a - color code (W:White I:Ivory)
LEGENDS:
PIR - Passive infrared     HFD - High frequency doppler     IDC - Isolated dry contact      DO - Digital output      MMC - Multi‑way manual control
Product Information
BDS-700 Datasheet
BDS-700 Installation Instruction
Design tools
CAD Symbols

  • Occupancy‑Vacancy sensor changeable control
  • Dual‑tech or single HFD sensing mode switchable
  • Front accessible sensor operation configurations
  • No grid opening - aesthetics pleasing sensor front
  • 4 levels of HFD sensitivity setting programmable
  • 180° field of view with coverage exceeds 100 sq. m.
  • Specialized lens provides vandalism protection
  • Accu‑Set digital potentiometer sensor settings
  • Dry contact relay output for versatile control
  • Screwless wall plate offers high end appearance
  • Low cut back cover provides more wiring space

    Models Tech ALS Power Output PPU Required MMC Control Control
    BDS‑700S a PIR+HFD 12‑24 VDC IDC YES NO All time on/off with ALS override
     a - color code (W:White I:Ivory)
LEGENDS:
PIR - Passive infrared     HFD - High frequency doppler     IDC - Isolated dry contact      DO - Digital output      MMC - Multi‑way manual control

Product Information
BDS-700 Datasheet
BDS-700 Installation Instruction
Design tools
CAD Symbols
