IR-TEC America, Inc.

LBT‑7xx Series

Line Voltage Wall Switch Sensor

The LBT type of the WALLSENZR family are line voltage wall switch sensors for direct load switching of general lighting control. Sensor setting and control modes can be configured by Accu‑Set pot and DIP switch behind the button cover. The LBT type provide 2 poles of hybrid switching control for all types of lighting.

The LBT‑7xx series comes with optional ambient light sensor (ALS) to inhibit the lighting if ambient light levels are higher than required.





  • Occupancy-Vacancy sensor changeable control
  • Available with or without ambient light sensor
  • Low profile, optimal décor sensor aesthetics
  • 180° field of view with coverage exceeds 100 sq. m.
  • Dual Hybrid-Switching for controlling HIC loads
  • Specialized lens provides vandalism protection
  • Accu-Set digital potentiometer sensor settings
  • Screwless wall plate offers high end appearance
  • Low cut back cover provides more wiring space
  • 120/277 VAC operation with no neutral required
    Models Tech ALS Power Output Neutral Required Ground Required Switching Control
    LBT‑700N a PIR - 120/277 VAC SLV NO YES Hybrid All time on/off
    LBT‑700S a PIR 120/277 VAC SLV NO YES Hybrid On/off switching with ALS override

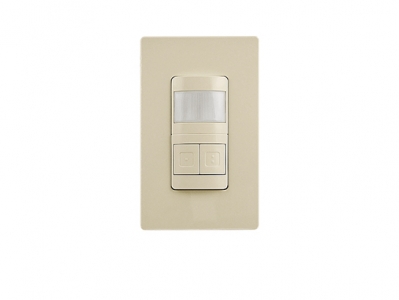

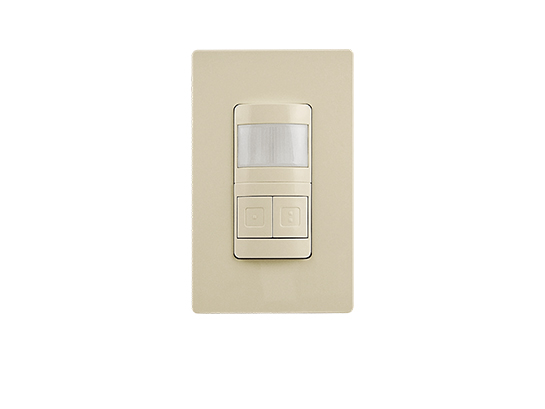

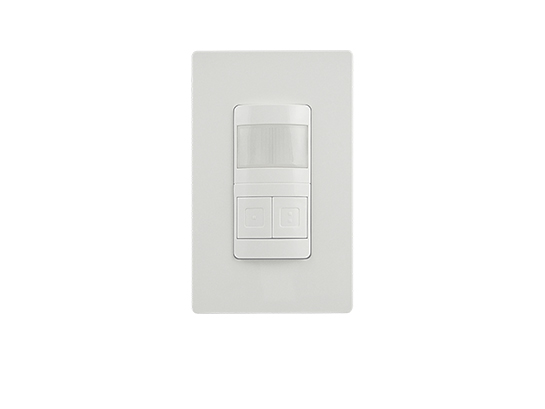

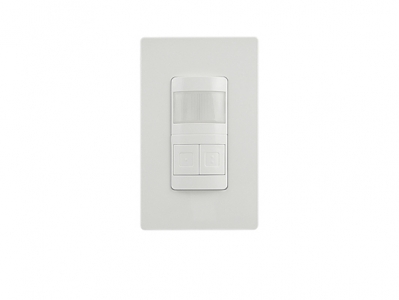

     a - color code (W:White I:Ivory)
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage
Product Information
LBT-700 Datasheet
LBT-700 Installation Instruction
Design tools
CAD Symbols

  • Occupancy-Vacancy sensor changeable control
  • Available with or without ambient light sensor
  • Low profile, optimal décor sensor aesthetics
  • 180° field of view with coverage exceeds 100 sq. m.
  • Dual Hybrid-Switching for controlling HIC loads
  • Specialized lens provides vandalism protection
  • Accu-Set digital potentiometer sensor settings
  • Screwless wall plate offers high end appearance
  • Low cut back cover provides more wiring space
  • 120/277 VAC operation with no neutral required

    Models Tech ALS Power Output Neutral Required Ground Required Switching Control
    LBT‑700N a PIR - 120/277 VAC SLV NO YES Hybrid All time on/off
    LBT‑700S a PIR 120/277 VAC SLV NO YES Hybrid On/off switching with ALS override
     a - color code (W:White I:Ivory)
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage

Product Information
LBT-700 Datasheet
LBT-700 Installation Instruction
Design tools
CAD Symbols
