Omni-OS-NET Sensor
OS‑NET sensors are the fundamental devices that constitute the OS‑NET mesh network. In other words, OS‑NET is a wireless mesh network formed by a number of OS‑NET sensors. Every ONS is a perfect combination of occupancy sensor, daylight sensor, lighting control processor, and wireless communicator. The Omni-ONS can be flexibly integrated with an OEM luminaire or mounted on a ceiling in a variety of options.
ON-LRD Series
Overview
The ON‑LRD series is a standard device of IR‑TEC's OS‑NET wireless mesh network solution packed with multiple functionalities including occupancy/vacancy sensing, daylight harvesting, bi‑level StepDIM or continuous SmartDIM, and wireless network communication for top‑notch intelligent lighting control.
The sensor not only controls the connected lighting in the programmed mode independently, but also acts as a network node to broadcast OS‑NET commands for group control wirelessly.
With ON‑LRD, you can effortlessly achieve an energy efficient, code‑compliant smart lighting control through a state‑of‑the‑art wireless sensor mesh network established by installing OS‑NET enabled lighting.
Features
Available Series
| Models | Tech | ALS | Power | Output | Setting | Wiring | Switching | Control |
| ON‑LRD‑509S a b | PIR | ● | 120/277 VAC | SLV+AO | Remote | Wire leads | Hybrid | Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming |
| ON‑LRD‑609SA b | PIR | ● | 120/277 VAC | SLV+AO | Remote | Cable | Hybrid | Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming |
| a - mount code b - lens code | ||||||||
| LEGENDS: PIR - Passive infrared SLV - Switched line voltage AO - Analog output (0‑10V) |
ON-MRD Series
Overview
The ON‑MRD series is a standard device of IR‑TEC's OS‑NET wireless mesh network solution packed with multiple functionalities including occupancy/vacancy sensing, daylight harvesting, bi‑level StepDIM or continuous SmartDIM, and wireless network communication for top‑notch intelligent lighting control.
The sensor not only controls the connected lighting in the programmed mode independently, but also acts as a network node to broadcast OS-NET commands for group control wirelessly.
With ON‑MRD, you can effortlessly achieve an energy efficient, code‑compliant smart lighting control through a state‑of‑the‑art wireless sensor mesh network established by installing OS‑NET enabled lighting.
Features
Available Series
| Models | Tech | ALS | Power | Output | Setting | Wiring | Switching | Control |
| ON‑MRD‑510S a b | PIR | ● | 230-240 VAC or DALI bus powered | DALI | Remote | Terminal block | DALI | Multiple sensing controls, continuous dimming or multi‑level dimming |
| ON‑MRD‑514S a b | PIR | ● | DALI bus powered | DALI | Remote | Terminal block | DALI | Multiple sensing controls, continuous dimming or multi‑level dimming |
| ON‑MRD‑600SA b | PIR | ● | 230-240 VAC or DALI bus powered | DALI | Remote | Cable | DALI | Multiple sensing controls, continuous dimming or multi‑level dimming |
| a - mount code b - lens code | ||||||||
| LEGENDS: PIR - Passive infrared |
ON-BRD Series
Overview
The ON‑BRD series is a low voltage OS‑NET Sensor packed with multi‑scheme sensing and control functionalities including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM, and wireless mesh networking capability. Through some easy and safe low voltage DC wiring connection with IR‑TEC power pack and 0-10V dimmable LED drivers, this sensor is capable of providing top‑notch intelligent lighting controls required for industrial and commercial applications.
The sensor not only controls the connected lighting in the programmed mode independently but also acts as a network node to broadcast OS-NET commands for group control wirelessly.
With ON‑BRD, you can effortlessly achieve an energy efficient, code‑compliant smart lighting control through a state‑of‑the‑art wireless sensor mesh network established by installing OS‑NET enabled lighting.
Features
Available Series
| Models | Tech | ALS | Power | Output | Setting | Wiring | Control |
| ON‑BRD‑500S a b | PIR | ● | 12‑24 VDC | AO | Remote | Wire leads | Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming |
| ON‑BRD‑510S a b | PIR | ● | 12‑24 VDC | AO | Remote | Terminal block | Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming |
| a - mount code b - lens code | |||||||
| LEGENDS: PIR - Passive infrared AO - Analog output (0‑10V) |
| Mounting Options | Code | Bracket # | |

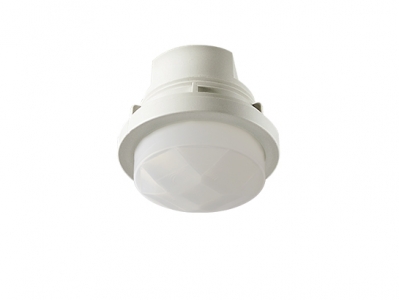

| Fixture Integrated | F | -- |  |
| IP‑66 Fixture Integrated | W | -- |  |

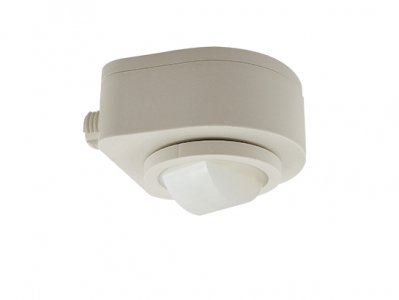

| Fixture External | E | EMB‑500 |  |
| IP‑66 Fixture External | P | PMB‑500 |  |

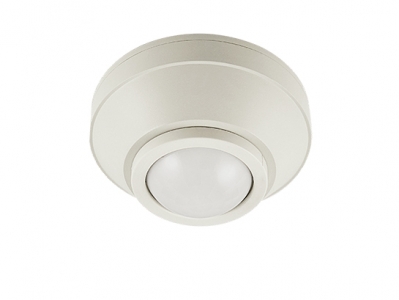

| Ceiling Surface | S | SMB‑500 |  |

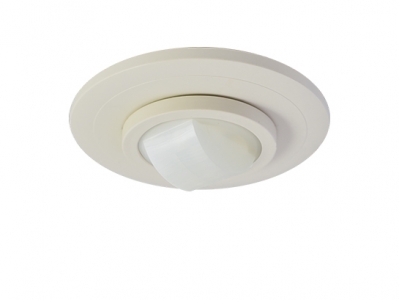

| Junction Box | C | CMB‑500 |  |
| Ceiling Recess | L | LMB‑500 |  |
| Lens Options | Code | Coverage | |
| Standard Cone |
A |  |
 |
| Extra Wide Cone |
B |  |
|
| High Bay Cone |
C |  |
|
| Standard Flat Round |
D |  |
 |
| Extra Wide Dome |
F |  |
 |
| Aisle Way Arch (Not for IP-66) |
G |  |
 |
| High Bay Dome |
H |  |
 |
| Long Aisle Arch (Not for IP-66) |
L |  |
|
ON-LRD Series
Overview
The ON‑LRD series is a standard device of IR‑TEC's OS‑NET wireless mesh network solution packed with multiple functionalities including occupancy/vacancy sensing, daylight harvesting, bi‑level StepDIM or continuous SmartDIM, and wireless network communication for top‑notch intelligent lighting control.
The sensor not only controls the connected lighting in the programmed mode independently, but also acts as a network node to broadcast OS‑NET commands for group control wirelessly.
With ON‑LRD, you can effortlessly achieve an energy efficient, code‑compliant smart lighting control through a state‑of‑the‑art wireless sensor mesh network established by installing OS‑NET enabled lighting.
Features
Available Series
| Models | Tech | ALS | Power | Output | Setting | Wiring | Switching | Control |
| ON‑LRD‑509S a b | PIR | ● | 120/277 VAC | SLV+AO | Remote | Wire leads | Hybrid | Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming |
| ON‑LRD‑609SA b | PIR | ● | 120/277 VAC | SLV+AO | Remote | Cable | Hybrid | Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming |
| a - mount code b - lens code | ||||||||
| LEGENDS: PIR - Passive infrared SLV - Switched line voltage AO - Analog output (0‑10V) |
ON-MRD Series
Overview
The ON‑MRD series is a standard device of IR‑TEC's OS‑NET wireless mesh network solution packed with multiple functionalities including occupancy/vacancy sensing, daylight harvesting, bi‑level StepDIM or continuous SmartDIM, and wireless network communication for top‑notch intelligent lighting control.
The sensor not only controls the connected lighting in the programmed mode independently, but also acts as a network node to broadcast OS-NET commands for group control wirelessly.
With ON‑MRD, you can effortlessly achieve an energy efficient, code‑compliant smart lighting control through a state‑of‑the‑art wireless sensor mesh network established by installing OS‑NET enabled lighting.
Features
Available Series
| Models | Tech | ALS | Power | Output | Setting | Wiring | Switching | Control |
| ON‑MRD‑510S a b | PIR | ● | 230-240 VAC or DALI bus powered | DALI | Remote | Terminal block | DALI | Multiple sensing controls, continuous dimming or multi‑level dimming |
| ON‑MRD‑514S a b | PIR | ● | DALI bus powered | DALI | Remote | Terminal block | DALI | Multiple sensing controls, continuous dimming or multi‑level dimming |
| ON‑MRD‑600SA b | PIR | ● | 230-240 VAC or DALI bus powered | DALI | Remote | Cable | DALI | Multiple sensing controls, continuous dimming or multi‑level dimming |
| a - mount code b - lens code | ||||||||
| LEGENDS: PIR - Passive infrared |
ON-BRD Series
Overview
The ON‑BRD series is a low voltage OS‑NET Sensor packed with multi‑scheme sensing and control functionalities including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM, and wireless mesh networking capability. Through some easy and safe low voltage DC wiring connection with IR‑TEC power pack and 0-10V dimmable LED drivers, this sensor is capable of providing top‑notch intelligent lighting controls required for industrial and commercial applications.
The sensor not only controls the connected lighting in the programmed mode independently but also acts as a network node to broadcast OS-NET commands for group control wirelessly.
With ON‑BRD, you can effortlessly achieve an energy efficient, code‑compliant smart lighting control through a state‑of‑the‑art wireless sensor mesh network established by installing OS‑NET enabled lighting.
Features
Available Series
| Models | Tech | ALS | Power | Output | Setting | Wiring | Control |
| ON‑BRD‑500S a b | PIR | ● | 12‑24 VDC | AO | Remote | Wire leads | Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming |
| ON‑BRD‑510S a b | PIR | ● | 12‑24 VDC | AO | Remote | Terminal block | Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming |
| a - mount code b - lens code | |||||||
| LEGENDS: PIR - Passive infrared AO - Analog output (0‑10V) |
| Mounting Options | Code | Bracket # | |
| Fixture Integrated | F | -- | |
| IP‑66 Fixture Integrated | W | -- | |
| Fixture External | E | EMB‑500 | |
| IP‑66 Fixture External | P | PMB‑500 | |
| Ceiling Surface | S | SMB‑500 | |
| Junction Box | C | CMB‑500 | |
| Ceiling Recess | L | LMB‑500 | |
| Lens Options | Code | Coverage | |
| Standard Cone |
A | |
|
| Extra Wide Cone |
B | |
|
| High Bay Cone |
C | |
|
| Standard Flat Round |
D | |
|
| Extra Wide Dome |
F | |
|
| Aisle Way Arch (Not for IP-66) |
G | |
|
| High Bay Dome |
H | |
|
| Long Aisle Arch (Not for IP-66) |
L | |
|
