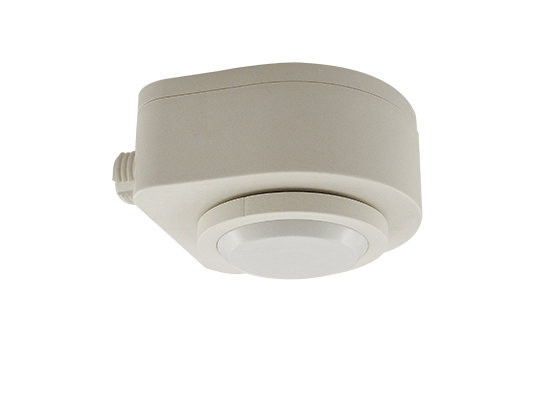

LPS‑5xx Series

Line Voltage Daylight Sensor

The LPS type of the TRANS‑LUX sensor family are line voltage daylight sensors designed for automatic daylighting control. This sensor is able to continuously measure the ambient light level in the controlled area and respond with switched line voltage output to control the connected lighting accordingly.

All TRANS‑LUX sensors are available with various mounting options.





  • Digital data control ambient light sensor
  • Human‑eye matching spectral response
  • Sudden bright light filter to avoid cycling
  • Sensor operation LED indicator built‑in
  • True zero‑cross hybrid switching control
  • 100‑2777 VAC universal line voltage powered
  • Available with variety of mounting options
    Models Tech Power Output Setting Wiring Switching Control

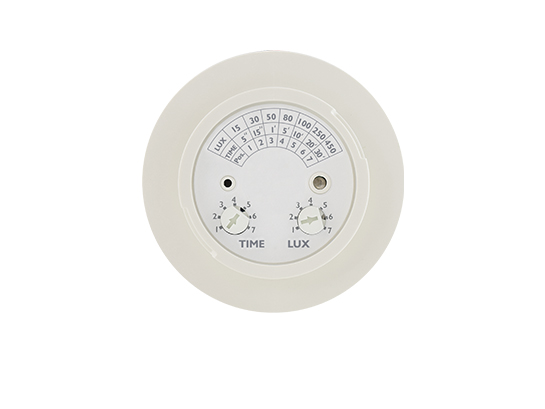

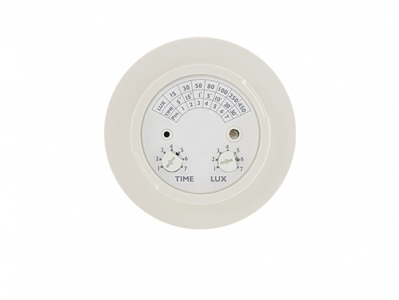

    LPS‑509S a ALS 100‑277 VAC SLV Accu‑Set pot Wire leads Hybrid On/off switching
     a - mount code
LEGENDS:
ALS - Ambient light sensor     SLV - Switched line voltage
Mounting Options Code Bracket #

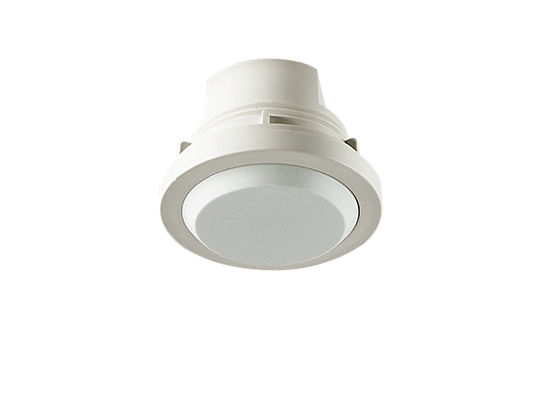

Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500

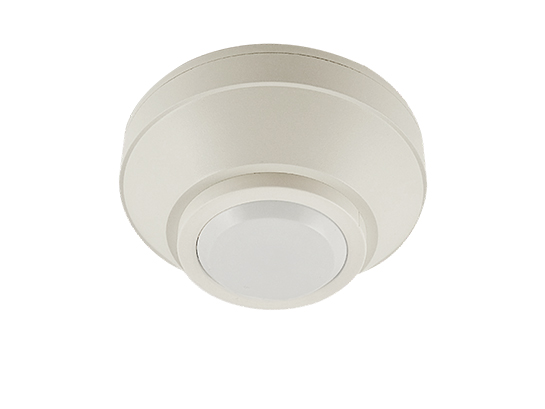

Ceiling Surface S SMB‑500

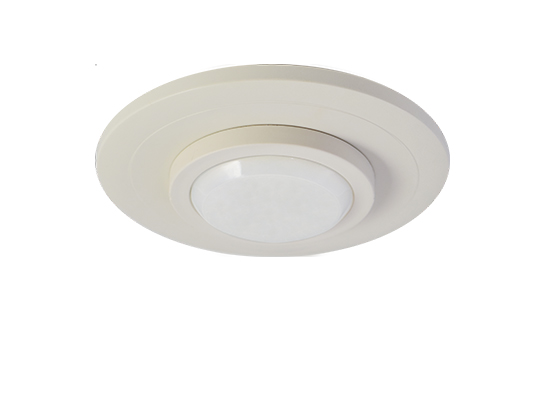

Junction Box C CMB‑500

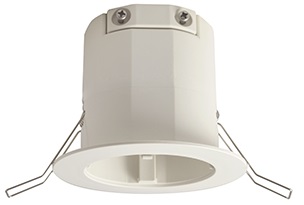

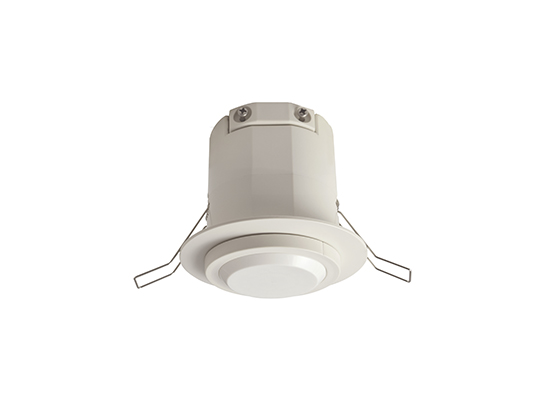

Ceiling Recess L LMB‑500


Product Information
LPS-509 Datasheet
LPS-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Design tools
CAD Symbols
