LRD‑609SA Series

Line Voltage SmartDIM Occupancy Sensor

The LRD‑609SA series of the TRANS‑PIR sensor family are two‑way IR remote programmable line voltage switching occupancy sensors with 0‑10V output for dimmable ballast or LED driver control. The sensor is capable of providing top‑notch energy efficient lighting control in multiple modes with fully programmable multi‑level high/low dim or SmartDIM continuous dimming control.

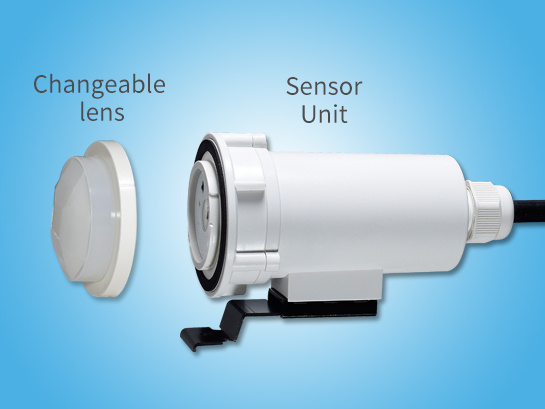

The LRD‑609SA series comes with a universal mounting design which provides complete installation flexibility with IP‑66 rating. Like all TRANS‑PIR sensors, the LRD‑609SA series are available with interchangeable lenses

Programming Tool - SRP-280





  • Omni‑directional pyroelectric infrared sensor
  • Digital data control ambient light sensor built-in
  • 2‑way IR remote programmable sensor setting
  • Hybrid switching for controlling loads with HIC
  • SmartDIM or multi-level high/low dim control
  • Remote programmable SmartDIM level setting
  • Up to 30 ft of remote programmable range
  • 120/277 VAC universal line voltage powered
  • Beeping or light flashing acknowledgement
  • IP‑66 rating universal mounting design
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Switching Control
    LRD‑609SA b PIR 120/277 VAC SLV+AO Remote Cable Hybrid Multi‑mode, multi‑level SmartDIM control
     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)
Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L


Product Information
LRD-609SA Datasheet
LRD-609SA Installation Instruction
Lens Options Datasheet
Lens Installation Instruction

  • Omni‑directional pyroelectric infrared sensor
  • Digital data control ambient light sensor built-in
  • 2‑way IR remote programmable sensor setting
  • Hybrid switching for controlling loads with HIC
  • SmartDIM or multi-level high/low dim control
  • Remote programmable SmartDIM level setting
  • Up to 30 ft of remote programmable range
  • 120/277 VAC universal line voltage powered
  • Beeping or light flashing acknowledgement
  • IP‑66 rating universal mounting design
  • Available with interchangeable lens options

    Models Tech ALS Power Output Setting Wiring Switching Control
    LRD‑609SA b PIR 120/277 VAC SLV+AO Remote Cable Hybrid Multi‑mode, multi‑level SmartDIM control
     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)

Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L



Product Information
LRD-609SA Datasheet
LRD-609SA Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
