Omni‑ONS

OS‑NET sensors are the fundamental devices that constitute the OS‑NET mesh network. In other words, OS‑NET is a wireless mesh network formed by a number of OS‑NET sensors. Every ONS is a perfect combination of occupancy sensor, daylight sensor, lighting control processor, and wireless communicator. The ONS can be flexibly integrated with an OEM luminaire or mounted on a ceiling in a variety of options.

Programming Tool - SRP-281





ON-LRD Series

Overview

The ON‑LRD series is a standard device of IR‑TEC's OS‑NET wireless mesh network solution packed with multiple functionalities including occupancy/vacancy sensing, daylight harvesting, bi‑level StepDIM or continuous SmartDIM, and wireless network communication for top‑notch intelligent lighting control.

The sensor not only controls the connected lighting in the programmed mode independently but also acts as a network node to broadcast OS-NET commands for group control wirelessly.

With ON‑LRD, you can effortlessly achieve an energy efficient, code‑compliant smart lighting control through a state‑of‑the‑art wireless sensor mesh network established by installing OS‑NET enabled lighting.

Features

  • Omni‑directional quad element infrared sensor
  • Digital data control ambient light sensor built‑in
  • Line voltage operation with wireless connectivity
  • 2‑way IR remote programmable sensor setting
  • One sensor can be members of multiple groups
  • Hybrid switching technology with 0-10V control
  • SmartDIM or high/low multi‑level StepDIM control
  • Exceptionally long remote programming range
  • Flexible fixture integration or ceiling mount options
  • Interchangeable lens options for all applications

Available Series

    Models Tech ALS Power Output Setting Wiring Switching Control
    ON‑LRD‑509S a b PIR 120/277 VAC SLV+AO Remote Wire leads Hybrid Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming
    ON‑LRD‑609SA b PIR 120/277 VAC SLV+AO Remote Cable Hybrid Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)

ON-BRD Series

Overview

The ON‑BRD series is a low voltage OS‑NET Sensor packed with multi‑scheme sensing and control functionalities including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM, and wireless mesh networking capability. Through some easy and safe low voltage DC wiring connection with IR‑TEC power pack and 0-10V dimmable LED drivers, this sensor is capable of providing top‑notch intelligent lighting controls required for industrial and commercial applications.

The sensor not only controls the connected lighting in the programmed mode independently but also acts as a network node to broadcast OS-NET commands for group control wirelessly.

With ON‑BRD, you can effortlessly achieve an energy efficient, code‑compliant smart lighting control through a state‑of‑the‑art wireless sensor mesh network established by installing OS‑NET enabled lighting.

Features

  • Omni‑directional quad element infrared sensor
  • Digital data control ambient light sensor built‑in
  • Low voltage operation with wireless connectivity
  • 2‑way IR remote programmable sensor setting
  • One sensor can be members of multiple groups
  • 0-10V dimming control output for up to 50 fixtures
  • SmartDIM or high/low multi‑level StepDIM control
  • Exceptionally long remote programming range
  • Flexible fixture integration or ceiling mount options
  • Interchangeable lens options for all applications

Available Series

    Models Tech ALS Power Output Setting Wiring Control
    ON‑BRD‑500S a b PIR 12‑24 VDC AO Remote Wire leads Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming
    ON‑BRD‑510S a b PIR 12‑24 VDC AO Remote Terminal block Multiple sensing controls with 0‑10V continuous dimming or multi‑level dimming
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     AO - Analog output (0‑10V)
Mounting Options Code Bracket #

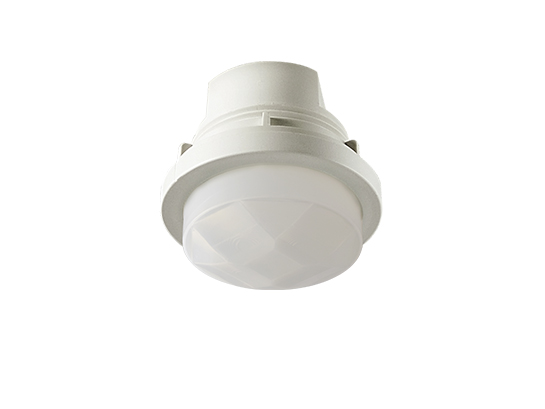

Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500

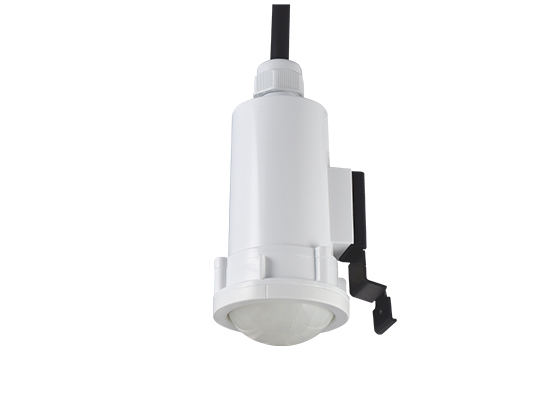

IP‑66 Fixture External P PMB‑500

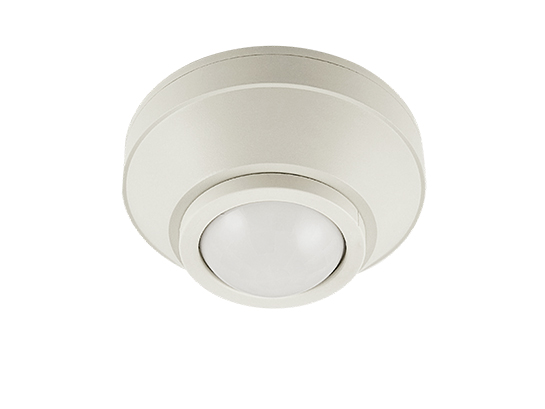

Ceiling Surface S SMB‑500

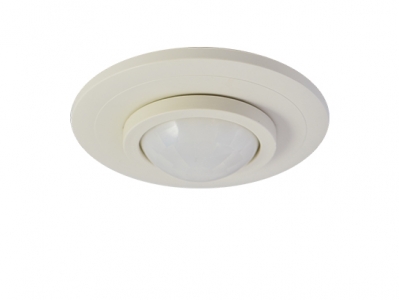

Junction Box C CMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H


Product Information
Programming Guide
EZ-GROUP Guide
Engineering Testing Guide
ON-LRD-509 Datasheet
ON-LRD-509 Installation Instruction
ON-LRD-609SA Datasheet
ON-LRD-609SA Installation Instruction
ON-BRD-500 Datasheet
ON-BRD-500 Installation Instruction
ON-BRD-510 Datasheet
ON-BRD-510 Installation Instruction
Mounting Datasheet
Lens Datasheet
Design tools
CAD Symbols
