COS‑5xx Series

Bi‑Level LED Control Occupancy Sensor

The COS type of the TRANS‑PIR sensor family are low voltage occupancy sensors designed for bi-level control of LED lighting with constant voltage (CV) driver. These sensors are powered by the LED driver and provides regulated current for LED lighting.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.





  • Omni‑directional quad element infrared sensor
  • 12‑48 VDC directly powered by LED driver
  • Pulse width modulation output control
  • Maximum control up to 3A per sensor
  • Walk test and sensor operation LED indicator

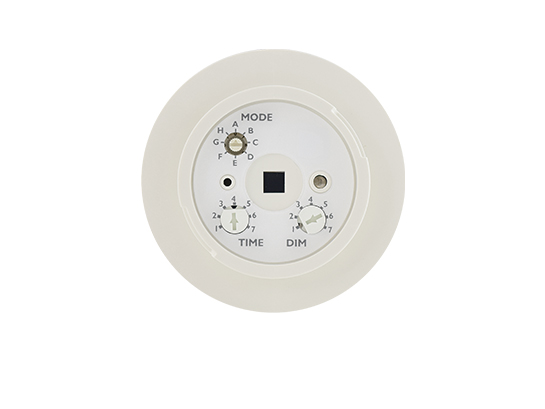

  • 8 rotary DIP switch selectable control modes
  • 7 low dim levels available via Accu‑Set trimmer
  • Push‑in locking terminals for easy connection
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Control
    COS‑516S a b PIR 12‑48 VDC RDP Accu‑Set pot
​Rotary DIP
Terminal block Multi‑mode, bi‑level StepDIM control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     RDP - Regulated DC power
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500

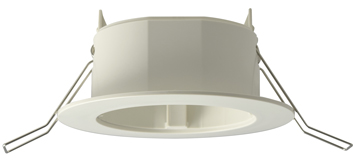

Ceiling Recess R RMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L


Product Information
COS-516 Datasheet
COS-516 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols

  • Omni‑directional quad element infrared sensor
  • 12‑48 VDC directly powered by LED driver
  • Pulse width modulation output control
  • Maximum control up to 3A per sensor
  • Walk test and sensor operation LED indicator
  • 8 rotary DIP switch selectable control modes
  • 7 low dim levels available via Accu‑Set trimmer
  • Push‑in locking terminals for easy connection
  • Available with variety of mounting options
  • Available with interchangeable lens options

    Models Tech ALS Power Output Setting Wiring Control
    COS‑516S a b PIR 12‑48 VDC RDP Accu‑Set pot
​Rotary DIP
Terminal block Multi‑mode, bi‑level StepDIM control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     RDP - Regulated DC power

Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500
Ceiling Recess R RMB‑500



Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L



Product Information
COS-516 Datasheet
COS-516 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
