LBD‑309SP Series

Line Voltage SmartDIM Occupancy Sensor

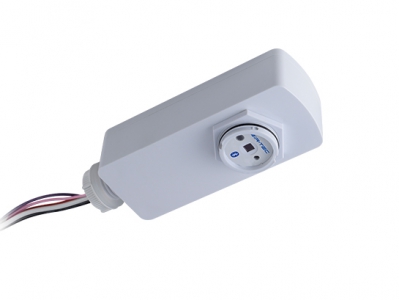

The LBD‑309SP series of the TRANS‑PIR sensor family is a low‑profile Bluetooth enabled occupancy sensors designed for fixture integration and providing multi‑scheme control with 0‑10V output for dimmable ballast or LED driver control. The sensor is capable of providing top‑notch energy efficient lighting control in multiple modes with fully programmable multi‑level high/low dim or SmartDIM continuous dimming control. All sensing control schemes and parameters can be set via IRTEC Sensor Config app.

This batten mount sensor can be externally assembled with an OEM luminaires through a 1/2" hole. The LBD‑309SP series are available with interchangeable lenses

Download the IR-TEC Configuration APP.





  • Omni‑directional digital pyroelectric infrared sensor
  • Digital data control ambient light sensor built-in
  • Bluetooth enabled remote sensor configurations
  • Intuitive Sensor Config App delivers easy setting
  • Available for on/off switching and 0‑10V dimming
  • Hybrid switching protect relay contacts from HIC
  • SmartDIM or multi-level high/low StepDIM control
  • Available for integrating with IP‑66 rated fixture
  • External mount through a 1/2" knockout hole
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Switching Control
    LBD‑309SP PIR 120/277 VAC SLV+AO APP Wire leads Hybrid Multi‑mode, multi‑level SmartDIM control
     Purchase lens separately
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)
Lens Options Code Coverage
Standard
Cone
a
Extra Wide
Cone
b
High Bay
Cone
c
Standard
Flat Round
d
Extra Wide
Dome
f
Aisle Way
Arch
(Not for IP-66)
g
High Bay
Dome
h
Long Aisle
Arch
(Not for IP-66)
l


Product Information
Technical Datasheet 0-10V Dimming
Technical Datasheet Photocell Operation
Technical Datasheet SmartDIM
LBD-309SP Datasheet
LRD-309SP Installation Instruction
Lens Installation Instruction

  • Omni‑directional digital pyroelectric infrared sensor
  • Digital data control ambient light sensor built-in
  • Bluetooth enabled remote sensor configurations
  • Intuitive Sensor Config App delivers easy setting
  • Available for on/off switching and 0‑10V dimming
  • Hybrid switching protect relay contacts from HIC
  • SmartDIM or multi-level high/low StepDIM control
  • Available for integrating with IP‑66 rated fixture
  • External mount through a 1/2" knockout hole
  • Available with interchangeable lens options

    Models Tech ALS Power Output Setting Wiring Switching Control
    LBD‑309SP PIR 120/277 VAC SLV+AO APP Wire leads Hybrid Multi‑mode, multi‑level SmartDIM control
     Purchase lens separately
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)

Lens Options Code Coverage
Standard
Cone
a
Extra Wide
Cone
b
High Bay
Cone
c
Standard
Flat Round
d
Extra Wide
Dome
f
Aisle Way
Arch
(Not for IP-66)
g
High Bay
Dome
h
Long Aisle
Arch
(Not for IP-66)
l



Product Information
Technical Datasheet 0-10V Dimming
Technical Datasheet Photocell Operation
Technical Datasheet SmartDIM
LBD-309SP Datasheet
LRD-309SP Installation Instruction
Lens Installation Instruction
