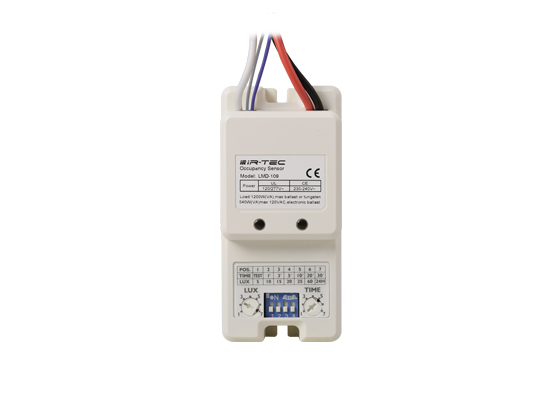

LMD-109

Line Voltage HFD Fixture Internal Sensor

The LMD‑109 is a line voltage occupancy sensor designed for OEM luminaire integration with 0-10V output to provide occupancy sensing based on/off switching or multi‑mode, bi‑level dimming control.

This occupancy sensor utilizes the advanced High Frequency Doppler (HFD) technology which is capable of detecting the occupant's presence and movement through non‑metallic enclosure, such as plastic cover or diffuser.



  • 120/277 VAC line voltage operation
  • High Frequency Doppler sensing technology
  • Hybrid switching for controlling loads with HIC
  • 0‑10V output for bi‑level dimming control
  • 4 control modes selectable via DIP switch settings
  • Accu-Set potentiometer for quick and easy setting
  • 4 levels of programmable HFD sensitivity settings
  • Ambient light sensor to inhibit unneeded light
  • Low profile case for slim lighting fixture assembly
Product Information
LMD-109 Datasheet
LMD-109 Installation Instruction

  • 120/277 VAC line voltage operation
  • High Frequency Doppler sensing technology
  • Hybrid switching for controlling loads with HIC
  • 0‑10V output for bi‑level dimming control
  • 4 control modes selectable via DIP switch settings
  • Accu-Set potentiometer for quick and easy setting
  • 4 levels of programmable HFD sensitivity settings
  • Ambient light sensor to inhibit unneeded light
  • Low profile case for slim lighting fixture assembly

Product Information
LMD-109 Datasheet
LMD-109 Installation Instruction
