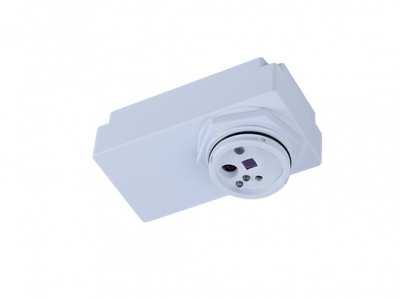

BRD‑310S Series

Low Voltage SmartDIM Occupancy Sensor

The BRD‑310S series of the TRANS‑PIR sensor family are two‑way IR remote programmable low voltage occupancy sensors designed to work with 0‑10V driver featuring AUX control power output. The sensor is capable of providing top‑notch energy efficient lighting control in multiple modes with fully programmable multi‑level high/low dim or SmartDIM continuous dimming control.

This sensor comes with a compact body design and can be easily integrated with luminaires through a 1.34" hole. The BRD‑310S series are available with interchangeable lenses.

Programming Tool - SRP-280





  • Omni‑directional infrared sensor
  • Digital data control ambient light sensor built-in
  • 2‑way IR remote programmable sensor setting
  • 0‑10V analog output for dimming control
  • Digital output available for power pack control
  • SmartDIM or multi-level high/low dim control
  • Remote programmable SmartDIM level setting
  • Up to 30 ft of remote programmable range
  • Beeping or light flashing acknowledgment
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Control
    BRD‑310S PIR 12-32 VDC AO+DO Remote Terminal block Multi‑mode, multi‑level SmartDIM control
     Purchase lens separately
LEGENDS:
PIR - Passive infrared     AO - Analog output (0‑10V)     DO - Digital output
Lens Options Code Coverage
Standard
Cone
a
Extra Wide
Cone
b
High Bay
Cone
c
Standard
Flat Round
d
Extra Wide
Dome
f
Aisle Way
Arch
(Not for IP-66)
g
High Bay
Dome
h
Long Aisle
Arch
(Not for IP-66)
l


Product Information
BRD-310S Datasheet
BRD-310S Installation Instruction
Lens Installation Instruction
