PBS‑7xx Series

Push-Button Switch

The PBS type push‑button switches are designed to fit in a standard NEMA wall box. These sleek, low profile switches provides low voltage momentary contact signal for a power pack or BMS to activate the operation of electrical load (such as lighting, fans, or HVAC) via pressing the button manually. Pluggable type terminal blocks makes low voltage wiring connection a quick and easy job. A screwless snap‑on wall plate is supplied to create modern, high‑end appearance for all kinds of commercial spaces.

The PBS‑7xx series are available with 1 pole or 2 pole models.





  • Low profile, optimal décor aesthetics
  • Available with 1 pole or 2 pole
  • Momentary contact signal control
  • Screwless wall plate offers high end appearance
  • Install friendly pluggable terminal
    Models Control Contact Output

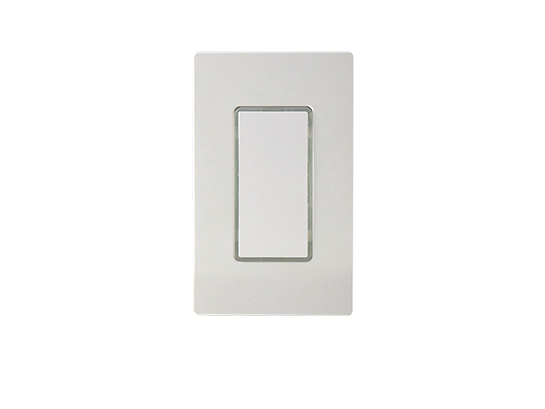

    PBS‑721 a Momentary, max. 50 mA, 24 VDC 1‑pole

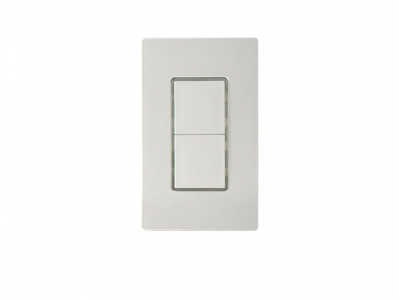

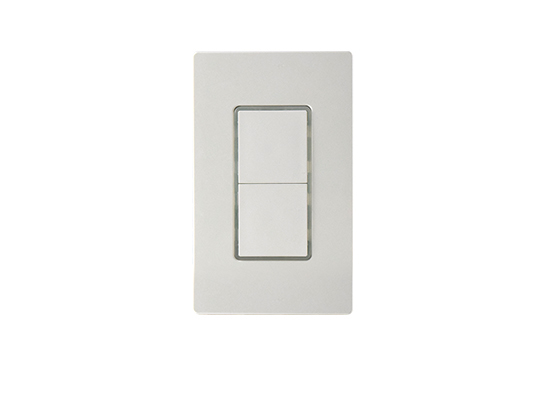

    PBS‑722 a Momentary, max. 50 mA, 24 VDC 2‑pole
     a - color code (W:White I:Ivory)
Product Information
PBS-721/PBS-722 Datasheet
PBS-721/PBS-722 Installation Instruction
Design tools
CAD Symbols
