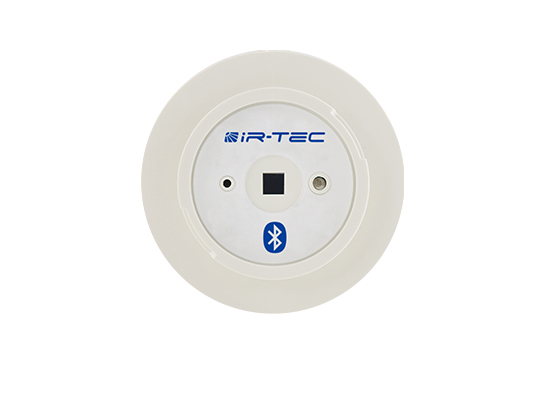

LBD‑5xx Series

Line Voltage SmartDIM Occupancy Sensor

The LBD type of the TRANS‑PIR sensor family is a Bluetooth enabled line voltage occupancy sensors with 0‑10V output for dimmable ballast or LED driver control. The sensor is capable of providing top‑notch energy efficient lighting control in multiple modes with fully programmable multi‑level high/low dim or SmartDIM continuous dimming control. All sensing control schemes and parameters can be set via IRTEC Sensor Config app.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.

Download the IR-TEC Configuration APP.





  • Omni‑directional digital pyroelectric infrared sensor
  • Digital data control ambient light sensor built-in
  • Bluetooth enabled remote sensor configurations
  • Intuitive Sensor Config App delivers easy setting
  • Available for on/off switching and 0-10V dimming
  • Hybrid switching protect relay contacts from HIC
  • SmartDIM or multi-level high/low StepDIM control
  • 120/277 VAC universal line voltage powered
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Switching Control
    LBD‑509S a b PIR 120/277 VAC SLV+AO APP Wire leads Hybrid Multi‑mode, multi‑level SmartDIM control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L


Product Information
TRANS Sensor Config App User Guide
LBD-509 Datasheet
LBD-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
