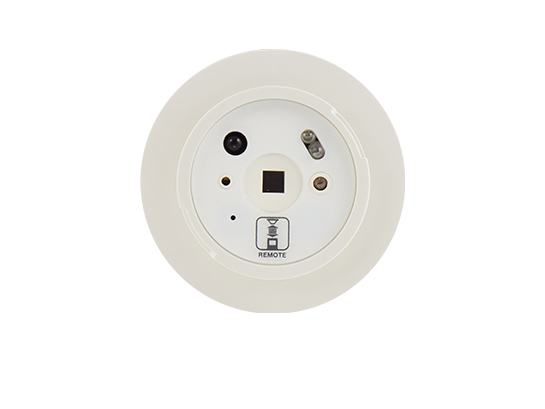

LRS‑5xx Series

Line Voltage Occupancy Sensor

The LRS type of the TRANS‑PIR sensor family are two‑way IR remote programmable line voltage switching occupancy sensors designed for all‑purposes energy efficient lighting control. The sensor can be easily programmed with specific delay time and ambient light level as desired, or download the existing setting of installaed sensor from the floor.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.

Programming Tool - SRP-280





  • Omni‑directional quad element infrared sensor
  • Digital data control ambient light sensor built-in
  • 2‑way IR remote programmable sensor setting
  • Hybrid switching for controlling loads with HIC
  • Up to 30 ft of remote programmable range
  • 120/277 VAC universal line voltage powered
  • Beeping or light flashing acknowledgement
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Switching Control
    LRS‑509S a b PIR 120/277 VAC SLV Remote Wire leads Hybrid On/off switching
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L


Product Information
LRS-509 Datasheet
LRS-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols

  • Omni‑directional quad element infrared sensor
  • Digital data control ambient light sensor built-in
  • 2‑way IR remote programmable sensor setting
  • Hybrid switching for controlling loads with HIC
  • Up to 30 ft of remote programmable range
  • 120/277 VAC universal line voltage powered
  • Beeping or light flashing acknowledgement
  • Available with variety of mounting options
  • Available with interchangeable lens options

    Models Tech ALS Power Output Setting Wiring Switching Control
    LRS‑509S a b PIR 120/277 VAC SLV Remote Wire leads Hybrid On/off switching
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage

Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500



Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L



Product Information
LRS-509 Datasheet
LRS-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
