BDS‑6xx Series

Low Voltage Dual‑Tech Occupancy Sensor

The BDS type of the TRANS‑DUO sensor family are low voltage dual technology occupancy sensors designed with isolated dry contact output for load switching through a power pack or a building management system for energy efficient lighting control. These sensors combine digital Passive Infrared (PIR) and a High Frequency Doppler (HFD) sensing technologies together in one housing.

All TRANS‑DUO sensors are available with interchangeable lenses.





  • Omni‑directional digital quad element PIR sensor
  • 12‑24 VDC low voltage power supply operation
  • Advanced High Frequency Doppler module
  • Isolated dry contact output for versatile control
  • Digital data control ambient light sensor built-in

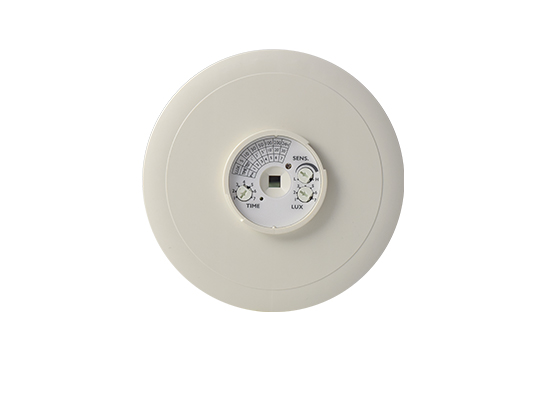

  • Accu‑Set potentiometer TIME and LUX settings
  • Bi‑color LED indicator for walk test verification
  • Snap‑on clip makes sensor installation easy
  • Available with interchangeable lens selection
    Models Tech ALS Power Output Wiring Cont
    BDS‑600SS b PIR+HFD 12‑24 VDC IDC Wire leads For occupancy based lighting and BMS control
    BDS‑610SS b PIR+HFD 12‑24 VDC IDC Terminal block For occupancy based lighting and BMS control
     b - lens code
LEGENDS:
PIR - Passive infrared     HFD - High frequency doppler     IDC - Isolated dry contact

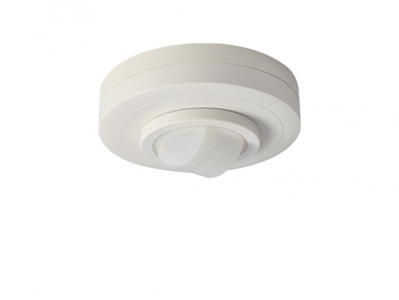

Lens Options Code Coverage (for PIR)
Standard

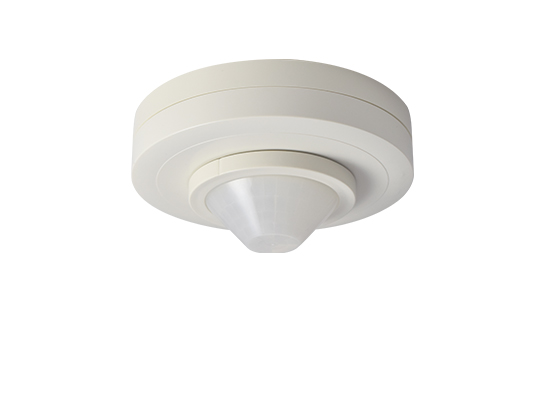

Cone
A

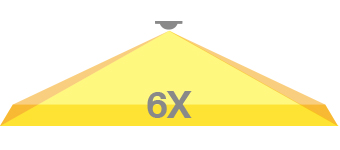

Extra Wide
Cone
B

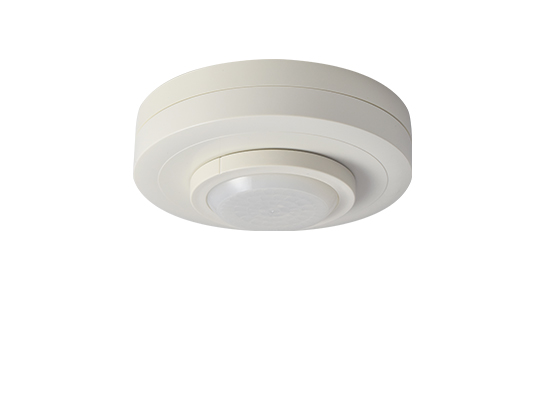

Standard
Flat Round
D

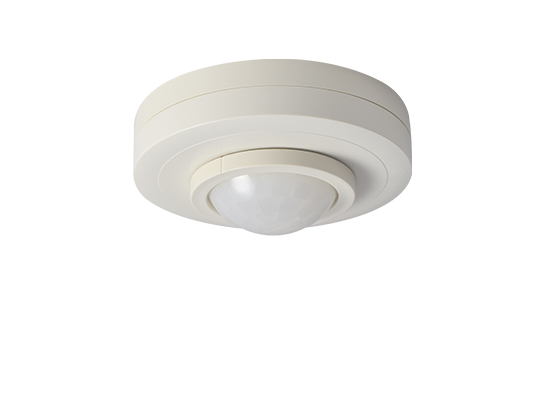

Extra Wide
Dome
F

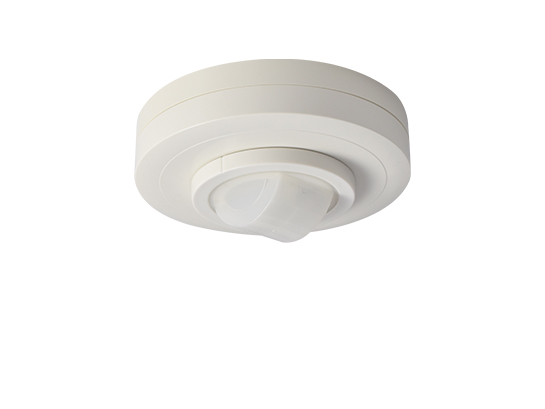

Aisle Way
Arch
G
Long Aisle
Arch
L


Product Information
BDS-600 Datasheet
BDS-600 Installation Instruction
BDS-610 Datasheet
BDS-610 Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols

  • Omni‑directional digital quad element PIR sensor
  • 12‑24 VDC low voltage power supply operation
  • Advanced High Frequency Doppler module
  • Isolated dry contact output for versatile control
  • Digital data control ambient light sensor built-in
  • Accu‑Set potentiometer TIME and LUX settings
  • Bi‑color LED indicator for walk test verification
  • Snap‑on clip makes sensor installation easy
  • Available with interchangeable lens selection

    Models Tech ALS Power Output Wiring Cont
    BDS‑600SS b PIR+HFD 12‑24 VDC IDC Wire leads For occupancy based lighting and BMS control
    BDS‑610SS b PIR+HFD 12‑24 VDC IDC Terminal block For occupancy based lighting and BMS control
     b - lens code
LEGENDS:
PIR - Passive infrared     HFD - High frequency doppler     IDC - Isolated dry contact

Lens Options Code Coverage (for PIR)
Standard
Cone
A
Extra Wide
Cone
B
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
G
Long Aisle
Arch
L



Product Information
BDS-600 Datasheet
BDS-600 Installation Instruction
BDS-610 Datasheet
BDS-610 Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
