IR-TEC America, Inc.

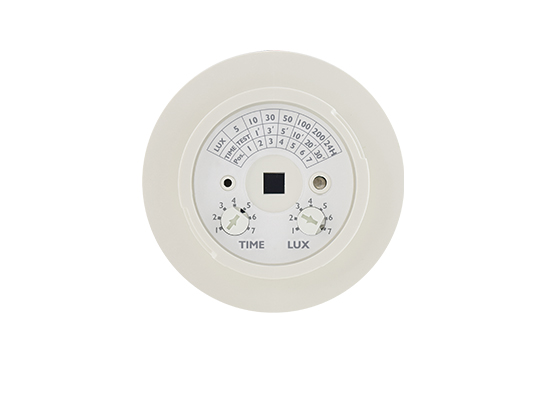

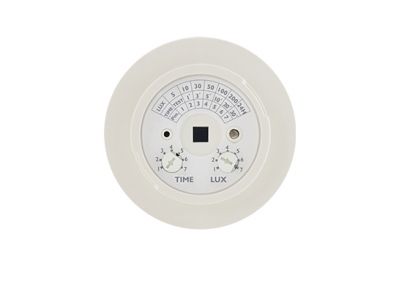

BOM‑5xx Series

Low Voltage Occupancy Sensor

The BOM type of the TRANS‑PIR sensor family are low voltage occupancy sensors designed to report the status of occupancy and ambient light level through two digital outputs for building energy management system (BEMS) control.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.





  • Omni‑directional quad element infrared sensor
  • 5‑12/12‑24 VDC low voltage power operation
  • Dual digital outputs for versatile applications
  • Walk test and sensor operation LED indicator
  • Accu‑Set potentiometer adjustable settings
  • Push‑in locking terminals for easy connection
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Control
    BOM‑514S a b PIR 5‑12 VDC DO2 Accu‑Set pot Terminal block For BMS day/night bi‑level control
    BOM‑515S a b PIR 12‑24 VDC DO2 Accu‑Set pot Terminal block For BMS day/night bi‑level control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     DO2 - Digital output x 2
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500

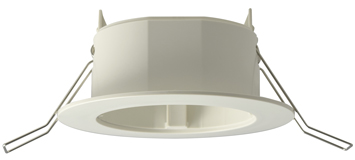

Ceiling Recess R RMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H


Product Information
BOM-514/BOM-515 Datasheet
BOM-514/BOM-515 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
