IR-TEC America, Inc.

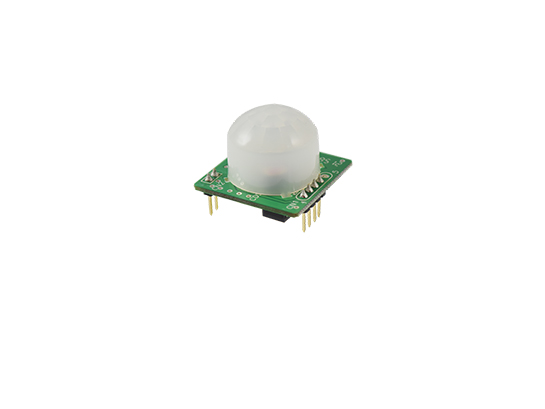

MS Series

PIR Sensor Module

The MS series are multi‑purpose, ready‑to‑use passive infrared sensor modules designed to provide signal outputs for OEM integration with motion activated products. The sensor module employs a dual element pyroelectric infrared sensor and photo sensor with a compact dome lens to provide motion sensing open collector output.

The MS series is available with 5VDC power, or a low power version at 3.6VDC.



  • Dual element infrared sensor
  • Various I/O connection options
  • Ceiling/wall mount device available
  • Superior RFI/EMI immunity
  • Noise reduction circuit
  • Excellent sensing capability
    Models Tech ALS Power Output Detection zones
    MS-360 PIR 5 VDC TTL 38 zones
    MS-360LP PIR 3.6 VDC TTL 38 zones

LEGENDS:
PIR - Passive infrared
Product Information
MS-360 Datasheet
MS-360LP Datasheet
