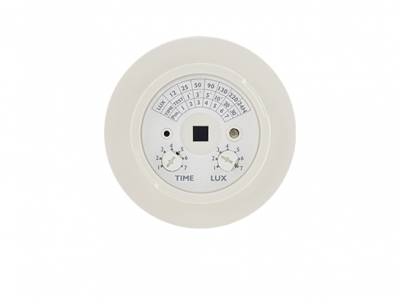

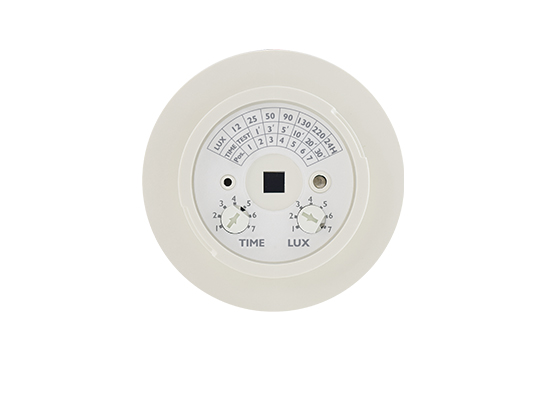

LOS‑5xx Series

Line Voltage Occupancy Sensor

The LOS type of the TRANS‑PIR sensor family are line voltage occupancy sensors for traditional on/off switching control. The LOS‑5xx series comes with optional ambient light sensor (ALS) to inhibit the lighting if ambient light levels are higher than required.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.





  • Omni‑directional quad element infrared sensor
  • 120/277 VAC universal line voltage powered
  • Walk test and sensor operation LED indicator
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Switching Control
    LOS‑502S a b PIR 120/277 VAC SLV Accu-Set pot Wire leads Zero‑cross On/off switching with ALS override
    LOS‑509S a b PIR 120/277 VAC SLV Accu‑Set pot Wire leads Hybrid On/off switching with ALS override
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H


Product Information
LOS-509 Datasheet
LOS-509 Installation Instruction
LOS-502 Datasheet
LOS-502 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
