Zhaga Compatible OS-NET Sensor

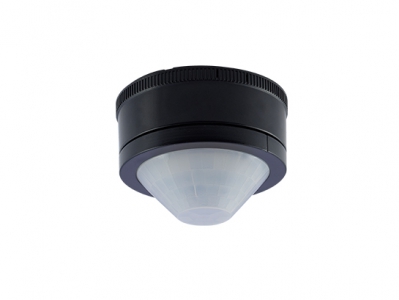

OS‑NET sensors are the fundamental devices that constitute the OS‑NET mesh network. In other words, OS‑NET is a wireless mesh network formed by a number of OS‑NET sensors. Every ONS is a perfect combination of occupancy sensor, daylight sensor, lighting control processor, and wireless communicator. This sensor is designed with an easy twist and lock connection with standard Zhaga Book 18 receptacle (type A).

Programming Tool - SRP-281





ON-MRD-734SZ

Overview

The ON-MRD-734SZ is a Zhaga Book 18 Type A compatible OS-NET Sensor packed with all functionalities, including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM control, and state-of-the-art wireless mesh networking capability required to enable smart lighting control with unequaled simplicity.

Through an easy twist and lock connection with standard Zhaga Book 18 receptacle on the luminaire, the sensor not only controls the integrated luminaire in the programmed scheme by sensing the motion of occupant/vehicle and ambient light level, but also functions as a network node to broadcast wireless commands for group control.

IP66 and IK08 protections allow the sensor to be used for high bay, parking lots, pedestrian areas, public parks, outdoor display and playgrounds. Multiple lens options offer different detection coverage to detect the motions with various orientations.

Features

  • Omni-directional digital pyroelectric PIR sensor
  • Supports DALI drivers with AUX and bus powers
  • Supports 4-pin Zhaga Book 18 edition 2 receptacle
  • Multiple sensing control schemes programmable
  • SmartDIM or multi-level high/low StepDIM control
  • Single device can be members of multiple groups
  • 2-way IR remote programming tool for all settings
  • Master/slave set for day/night sync group control
  • Occupied status digital output for auxiliary control
  • Multiple lens options selectable for different ranges
  • IP66 and IK08 protections for outdoor applications
  • Occupancy sensing status digital output available

Available Series

    Models Tech ALS Power Output Setting Connection Switching Control
    ON‑MRD‑734SZ b PIR AUX (+24V) DALI Remote Zhaga Book 18 (Type A) DALI Multiple sensing controls, continuous dimming or multi‑level dimming
     b - lens code
LEGENDS:
PIR - Passive infrared

ON-BRD-734SZ

Overview

The ON-BRD-734SZ is a Zhaga based, low voltage powered OS-NET Sensor (ONS) packed with all functionalities, including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM control, and state-of-the-art wireless mesh networking capability required to achieve smart lighting control.

Through an easy twist and lock connection with standard Zhaga Book 18 receptacle, the sensor not only controls the integrated luminaire in the programmed scheme by sensing the motion of occupant/vehicle and ambient light level, but also functions as a network node to broadcast wireless commands for group control.

IP66 and IK08 protections allow the sensor to be used for high bay, parking lots, pedestrian areas, public parks, outdoor display and playgrounds. Multiple lens options offer different detection coverage to detect the motions with various orientations.

Features

  • Omni-directional digital pyroelectric PIR sensor
  • OS-NET wireless mesh networking technology
  • Supports 0-10V driver with integrated AUX power
  • Supports 4-pin Zhaga Book 18 edition 2 receptacle
  • Multiple sensing control schemes programmable
  • SmartDIM or multi-level high/low StepDIM control
  • Single device can be members of multiple groups
  • 2-way IR remote programming tool for all settings
  • Master/slave set for day/night sync group control
  • Occupied status digital output for auxiliary control
  • Multiple lens options selectable for different ranges
  • IP66 and IK08 protections for outdoor applications

Available Series

    Models Tech ALS Power Analog Output Digital Output Setting Connection Control
    ON‑BRD‑734SZ b PIR 12-24 VDC (AUX) 0-10V Active low @ occ Remote Zhaga Book 18 Multiple sensing controls, continuous dimming or multi‑level dimming
     b - lens code
LEGENDS:
PIR - Passive infrared
Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L


Product Information
Programming Guide
EZ-GROUP Guide
Engineering Testing Guide
ON-MRD-734SZ Datasheet
ON-MRD-734SZ Installation Instruction
ON-BRD-734SZ Datasheet
ON-BRD-734SZ Installation Instruction
Lens Datasheet
Lens Installation Instruction

ON-MRD-734SZ

Overview

The ON-MRD-734SZ is a Zhaga Book 18 Type A compatible OS-NET Sensor packed with all functionalities, including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM control, and state-of-the-art wireless mesh networking capability required to enable smart lighting control with unequaled simplicity.

Through an easy twist and lock connection with standard Zhaga Book 18 receptacle on the luminaire, the sensor not only controls the integrated luminaire in the programmed scheme by sensing the motion of occupant/vehicle and ambient light level, but also functions as a network node to broadcast wireless commands for group control.

IP66 and IK08 protections allow the sensor to be used for high bay, parking lots, pedestrian areas, public parks, outdoor display and playgrounds. Multiple lens options offer different detection coverage to detect the motions with various orientations.

Features

  • Omni-directional digital pyroelectric PIR sensor
  • Supports DALI drivers with AUX and bus powers
  • Supports 4-pin Zhaga Book 18 edition 2 receptacle
  • Multiple sensing control schemes programmable
  • SmartDIM or multi-level high/low StepDIM control
  • Single device can be members of multiple groups
  • 2-way IR remote programming tool for all settings
  • Master/slave set for day/night sync group control
  • Occupied status digital output for auxiliary control
  • Multiple lens options selectable for different ranges
  • IP66 and IK08 protections for outdoor applications
  • Occupancy sensing status digital output available

Available Series

    Models Tech ALS Power Output Setting Connection Switching Control
    ON‑MRD‑734SZ b PIR AUX (+24V) DALI Remote Zhaga Book 18 (Type A) DALI Multiple sensing controls, continuous dimming or multi‑level dimming
     b - lens code
LEGENDS:
PIR - Passive infrared

ON-BRD-734SZ

Overview

The ON-BRD-734SZ is a Zhaga based, low voltage powered OS-NET Sensor (ONS) packed with all functionalities, including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM control, and state-of-the-art wireless mesh networking capability required to achieve smart lighting control.

Through an easy twist and lock connection with standard Zhaga Book 18 receptacle, the sensor not only controls the integrated luminaire in the programmed scheme by sensing the motion of occupant/vehicle and ambient light level, but also functions as a network node to broadcast wireless commands for group control.

IP66 and IK08 protections allow the sensor to be used for high bay, parking lots, pedestrian areas, public parks, outdoor display and playgrounds. Multiple lens options offer different detection coverage to detect the motions with various orientations.

Features

  • Omni-directional digital pyroelectric PIR sensor
  • OS-NET wireless mesh networking technology
  • Supports 0-10V driver with integrated AUX power
  • Supports 4-pin Zhaga Book 18 edition 2 receptacle
  • Multiple sensing control schemes programmable
  • SmartDIM or multi-level high/low StepDIM control
  • Single device can be members of multiple groups
  • 2-way IR remote programming tool for all settings
  • Master/slave set for day/night sync group control
  • Occupied status digital output for auxiliary control
  • Multiple lens options selectable for different ranges
  • IP66 and IK08 protections for outdoor applications

Available Series

    Models Tech ALS Power Analog Output Digital Output Setting Connection Control
    ON‑BRD‑734SZ b PIR 12-24 VDC (AUX) 0-10V Active low @ occ Remote Zhaga Book 18 Multiple sensing controls, continuous dimming or multi‑level dimming
     b - lens code
LEGENDS:
PIR - Passive infrared

Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L



Product Information
Programming Guide
EZ-GROUP Guide
Engineering Testing Guide
ON-MRD-734SZ Datasheet
ON-MRD-734SZ Installation Instruction
ON-BRD-734SZ Datasheet
ON-BRD-734SZ Installation Instruction
Lens Datasheet
Lens Installation Instruction
