IR-TEC International Ltd.

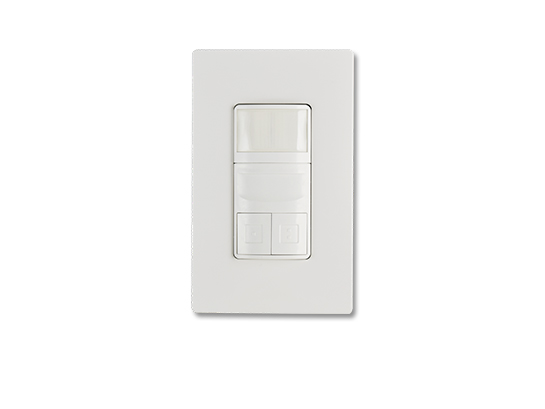

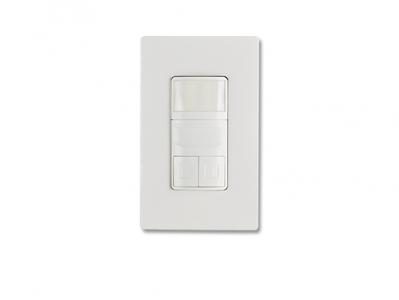

LDT-700S
Dual-Tech Wall Switch Sensor

The LDT-700S of the WALLSENZR family is a dual technology line voltage wall switch sensor for direct load switching of general lighting control.

This wall switch combines digital Passive Infrared (PIR) and High Frequency Doppler (HFD) sensing technologies into an aesthetically pleasing housing to provide second-to-none occupancy/vacancy sensing based lighting control for all applications.

The LDT-700S provides 2 pole of hybrid switching control for all types of lighting.

WALLSENZR Brochure

Features
Downloads

Power: 120‑277 VAC
Sensing Tech: PIR+HFD
Output: Switched line voltage (hybrid)
Setting: Manual
Mount: NEMA
Connection: Lead wire
Pole: 2-pole
Compliance: uL, FCC, CA24

Occupancy‑Vacancy sensor changeable control
Dual‑tech or single HFD sensing mode switchable
Front accessible sensor operation configurations
No grid opening - aesthetics pleasing sensor front
4 levels of HFD sensitivity setting programmable
180° field of view with coverage exceeds 100 sq. m.
Specialized lens provides vandalism protection
Accu‑Set digital potentiometer sensor settings
Dual Hybrid‑Switching technology for HIC load control
Screwless wall plate offers high end appearance
Low cut back cover provides more wiring space

Product Information

LDT-700 Datasheet
LDT-700 Installation Instruction

Design tools

CAD Symbols

Features

Occupancy‑Vacancy sensor changeable control
Dual‑tech or single HFD sensing mode switchable
Front accessible sensor operation configurations
No grid opening - aesthetics pleasing sensor front
4 levels of HFD sensitivity setting programmable
180° field of view with coverage exceeds 100 sq. m.
Specialized lens provides vandalism protection
Accu‑Set digital potentiometer sensor settings
Dual Hybrid‑Switching technology for HIC load control
Screwless wall plate offers high end appearance
Low cut back cover provides more wiring space
