ON-BRD‑500SF ON-BRD-500SW
OS-NET Sensor
The ON‑BRD‑500SF (fixture integration) and ON-BRD-500SW (IP-66 fixture integration) are low voltage OS‑NET sensors packed with multi-scheme sensing and control functionalities including occupancy/vacancy sensing, daylight harvesting, bi‑level StepDIM or continuous SmartDIM, and wireless network communication for top‑notch intelligent lighting control.
Through some easy and safe low voltage DC wiring connection with IR-TEC power pack and 0-10V dimmable LED drivers, this sensor is capable of providing top-notch intelligent lighting controls required for industrial and commercial applications.

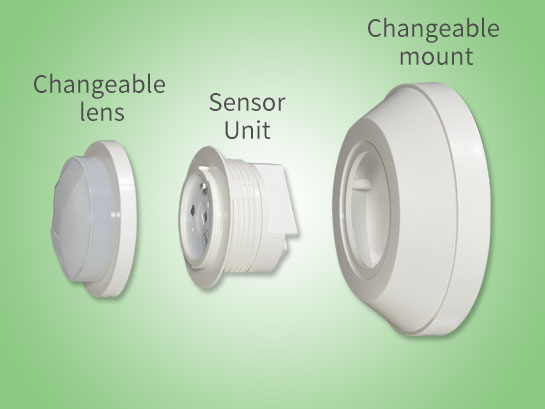

The sensor can be mounted on the ceiling, or integrated with a lighting fixture in various formats via specific mounting brackets available.
Different lenses can be applied to provide specific coverage at different mounting heights.
| Mounting brackets for ON-BRD-500SF | ||
| EMB‑500 | Fixture external |  |
| SMB‑500 | Ceiling surface |  |
| CMB‑500 | Junction box |  |
| RMB‑500 | Ceiling recess |  |
| Mounting brackets for ON-BRD-500SW (IP-66) | ||
| PMB‑500 | IP‑66 fixture external |  |
| Lens Options | Coverage | |
| Lens A Standard |
 |
 |
|
Lens B |
|
 |
| Lens C High Bay |
|
 |
| Lens D Standard |
 |
 |
| Lens F Extra Wide |
 |
 |
| Lens G * Aisle Way |
 |
 |
| Lens H High Bay |
 |
 |
| Lens L * Long Aisle |
|
 |
| * Not for IP-66 application | ||
| Mounting brackets for ON-BRD-500SF | ||
| EMB‑500 | Fixture external | |
| SMB‑500 | Ceiling surface | |
| CMB‑500 | Junction box | |
| RMB‑500 | Ceiling recess | |
| Mounting brackets for ON-BRD-500SW (IP-66) | ||
| PMB‑500 | IP‑66 fixture external | |
| Lens Options | Coverage | |
| Lens A Standard |
|
|
|
Lens B |
|
|
| Lens C High Bay |
|
|
| Lens D Standard |
|
|
| Lens F Extra Wide |
|
|
| Lens G * Aisle Way |
|
|
| Lens H High Bay |
|
|
| Lens L * Long Aisle |
|
|
| * Not for IP-66 application | ||
