Wireless Lighting Control
DALI Sensor 0-10V Sensor Zhaga Sensor Button Power Pack & Controller Configuration Tool| Model | Power | Sensing Tech | Output | Setting | Mount | Connection | Coverage | Compliance | |
 |
ON-MRD-600SA OS-NET Sensor |
230-240 VAC DALI bus power |
PIR | DALI broadcast | Remote (IR) | Fixture attached | Lead wire | Changeable | UKCA, CE |
 |
ON-MRD-510SF ON-MRD-510SW OS-NET Sensor |
230-240 VAC DALI bus power |
PIR | DALI broadcast | Remote (IR) | Changeable, fixture or ceiling | Terminal block | Changeable | UKCA, CE |
 |
ON-MRD-210S OS-NET Sensor |
230-240 VAC DALI bus power |
PIR | DALI broadcast | Remote (IR) | Fixture integrated | Terminal block | Fixed | UKCA, CE |
 |
ON-MRD-200SP OS-NET Sensor |
230-240 VAC DALI bus power |
PIR | DALI broadcast | Remote (IR) | Batten mount | Lead wire | Fixed | UKCA, CE |
|
ON-MRD-514SF ON-MRD-514SW OS-NET Sensor |
DALI bus power | PIR | DALI broadcast | Remote (IR) | Changeable, fixture or ceiling | Terminal block | Changeable | UKCA, CE |
| Model | Power | Sensing Tech | Output | Setting | Mount | Connection | Coverage | Compliance | |
|
ON-LRD-609SA OS-NET Sensor |
120-277 VAC | PIR | Switched line voltage (hybrid) 0-10V |
Remote (IR) | Fixture attached | Lead wire | Changeable | uL, UKCA, CE, FCC, CA24 |
|
ON-LRD-509SF ON-LRD-509SW OS-NET Sensor |
120-277 VAC | PIR | Switched line voltage (hybrid) 0-10V |
Remote (IR) | Changeable, fixture or ceiling | Lead wire | Changeable | uL, UKCA, CE, FCC, CA24 |
|
ON-LRD-209S OS-NET Sensor |
120-277 VAC | PIR | Switched line voltage (hybrid) 0-10V |
Remote (IR) | Fixture integrated | Lead wire | Fixed | uL, UKCA, CE, FCC, CA24 |
|
ON-LRD-209SP OS-NET Sensor |
120-277 VAC | PIR | Switched line voltage (hybrid) 0-10V |
Remote (IR) | Batten mount | Lead wire | Fixed | uL, UKCA, CE, FCC, CA24 |
|
ON-BRD-500SF ON-BRD-500SW OS-NET Sensor |
12-24 VDC | PIR | 0-10V | Remote (IR) | Changeable, fixture or ceiling | Lead wire | Changeable | UKCA, CE, FCC, CA24 |
|
ON-BRD-510SF ON-BRD-510SW OS-NET Sensor |
12-24 VDC | PIR | 0-10V | Remote (IR) | Changeable, fixture or ceiling | Terminal block | Changeable | UKCA, CE, FCC, CA24 |
| Model | Power | Sensing Tech | Output | Setting | Mount | Connection | Coverage | Compliance | |
 |
ON-MRD-734SZ OS-NET Sensor |
Aux (+24V) | PIR | DALI broadcast | Remote (IR) | ZHAGA book 18 | ZHAGa book 18 (type A) | Changeable | UKCA, CE |
|
ON-BRD-734SZ OS-NET Sensor |
12-24 VDC (Aux) | PIR | 0-10V | Remote (IR) | ZHAGA book 18 | ZHAGA book 18 | Changeable | UKCA, CE |
| Model | Power | Channel | Setting | Mount | Connection | Color | Compliance | |
 |

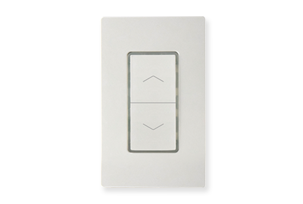

ON-PBD-705W OS-NET Button |
120-277 VAC | 1-channel | Remote (IR) | NEMA | Lead wire | White | uL, FCC, CA24 |
 |

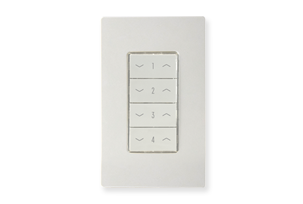

ON-PBD-708W 4-Channel OS-NET Button |
120-277 VAC | 4-channel | Remote (IR) | NEMA | Lead wire | White | uL, FCC, CA24 |
 |
ON-PBD-709W OS-NET Scene Controller |
120-277 VAC | 4-channel | Remote (IR) | NEMA | Lead wire | White | uL, FCC, CA24 |
 |

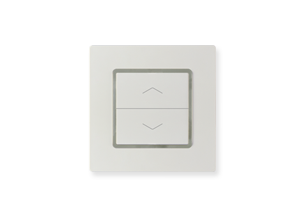

ON-PBD-815W OS-NET Button |
230 VAC | 1-channel | Remote (IR) | EURO | Terminal block | White | UKCA, CE |
| Model | Power | Max Load | Output | Setting | Connection | DC Output | Control Signal | Compliance | |
 |
ON-PPU-301 OS-NET Power Pack & Load Controller |
120-277 VAC | 20A | Switched line voltage | Remote (IR) | Lead wire | 24 VDC, 100mA max | Dry contact or active low open collector | uL, FCC, CA24 |
|
ON-PPU-302 OS-NET Power Pack with 0-10V |
120-277 VAC | 20A | Switched line voltage & 0-10V | Remote (IR) | Lead wire | 24 VDC, 100mA max | Dry contact or active low open collector | uL, FCC, CA24 |
 |
ON-PPU-303 OS-NET Demand Response Controller |
120-277 VAC | - | - | Remote (IR) | Lead wire | - | DRC: dry contact (NO) | uL, FCC, CA24 |
 |
ON-PPU-304 OS-NET Override Controller |
120-277 VAC | 20A | Switched line voltage | Remote (IR) | Lead wire | - | Dry contact or active low open collector | uL, FCC, CA24 |
