ON-MRD‑600SA
OS-NET Sensor

The ON‑MRD‑600SA is a standard device of IR‑TEC's OS‑NET wireless mesh network solution packed with multiple functionalities including occupancy/vacancy sensing, daylight harvesting, bi‑level StepDIM or continuous SmartDIM, and wireless network communication for top‑notch intelligent lighting control.

The sensor not only controls the connected lighting in the programmed mode independently, but also acts as a network node to broadcast OS‑NET commands for group control wirelessly.

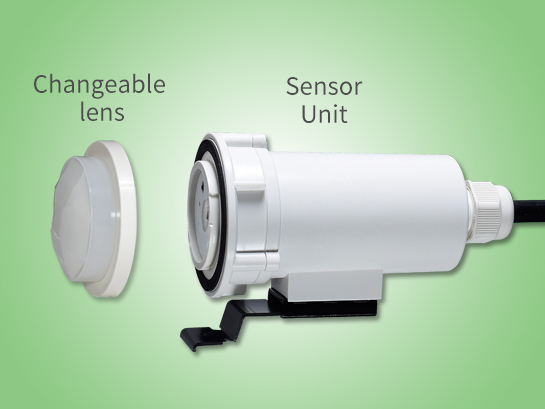

Different lenses can be applied to provide specific coverage at different mounting heights.

Applicable Remote
SRP-281	Full functionality
URP-100	Manual ON/OFF/DIM, TIME/LUX setting

More about OS-NET

Power: 230-240 VAC or DALI bus power
Sensing Tech: PIR
Output: DALI broadcast
Setting: Remote (IR)
Mount: Fixture attached
Connection: Lead wire
Coverage: Changeable
Compliance: UKCA, CE

Omni-directional digital pyroelectric infrared sensor
Switched AC mains or DALI bus power operation
All functionalities in one and one for all controls
2‑way IR remote programming tool for all settings
Single device can be members of multiple groups
SmartDIM or multi‑level high/low StepDIM control
Exceptionally long range of remote programming
IP‑66 rating universal mounting design
Multiple lens options allow broadest application

Lens Options		Coverage
Lens A Standard
Lens B Extra Wide
Lens C High Bay
Lens D Standard
Lens F Extra Wide
Lens G * Aisle Way
Lens H High Bay
Lens L * Long Aisle
* Not for IP-66 application

Product Information

Programming Guide
EZ-GROUP Guide
Engineering Testing Guide
ON-MRD-600SA Datasheet
ON-MRD-600SA Installation Instruction
Lens Options Datasheet
Lens Installation Instruction

Features

Omni-directional digital pyroelectric infrared sensor
Switched AC mains or DALI bus power operation
All functionalities in one and one for all controls
2‑way IR remote programming tool for all settings
Single device can be members of multiple groups
SmartDIM or multi‑level high/low StepDIM control
Exceptionally long range of remote programming
IP‑66 rating universal mounting design
Multiple lens options allow broadest application

Lens Options

Lens Options		Coverage
Lens A Standard
Lens B Extra Wide
Lens C High Bay
Lens D Standard
Lens F Extra Wide
Lens G * Aisle Way
Lens H High Bay
Lens L * Long Aisle
* Not for IP-66 application
