IR-TEC International Ltd.

ON-PPU‑301
OS-NET Power Pack & Load Controller

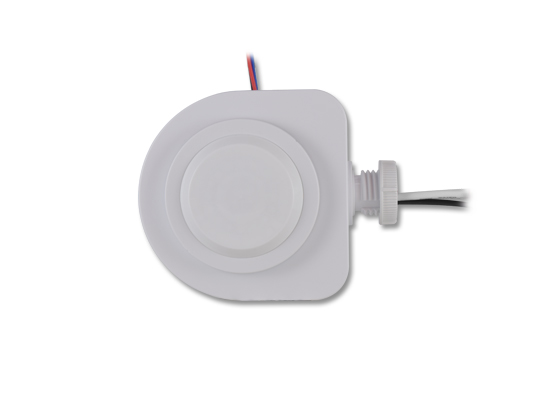

The ON‑PPU-301 is an OS-NET enabled power pack and plug load controller featuring state-of-the-art wireless mesh network capabilities for achieving top-notch intelligent lighting control.

This device can be attached to a junction box, cable tray, or fixture through a 1/2" knockout with the designed threaded nipple and locknut.

Applicable Remote
SRP-281	Full functionality

More about OS-NET

Features
Downloads

Power: 120-277 VAC
Max Load: 20A
Output: Switched line voltage
Setting: Remote (IR)
Connection: Lead wire
DC Output: 24 VDC, 100mA max.
Control Signal: Dry contact or active low open collector
Compliance: uL, FCC, CA24

OS-NET enabled power pack & load controller
120-277VAC universal line voltage operation
Class 2 switching mode 24VDC power supply
Controls lighting and load switching up to 20A
Ideal for zone lighting and plug load controls
Accept dry contact or active-low open collector
2-way IR remote programmable control settings
One device can be assigned to max four groups
Dual color LED indicates network linkage status
Zero-crossing relay contacts switching control

Product Information

Programming Guide
EZ-GROUP Guide
ON-PPU-301 Datasheet
ON-PPU-301 Installation Instruction

Features

Power: 120-277 VAC
Max Load: 20A
Output: Switched line voltage
Setting: Remote (IR)
Connection: Lead wire
DC Output: 24 VDC, 100mA max.
Control Signal: Dry contact or active low open collector
Compliance: uL, FCC, CA24

OS-NET enabled power pack & load controller
120-277VAC universal line voltage operation
Class 2 switching mode 24VDC power supply
Controls lighting and load switching up to 20A
Ideal for zone lighting and plug load controls
Accept dry contact or active-low open collector
2-way IR remote programmable control settings
One device can be assigned to max four groups
Dual color LED indicates network linkage status
Zero-crossing relay contacts switching control

Download

Product Information

Programming Guide
EZ-GROUP Guide
ON-PPU-301 Datasheet
ON-PPU-301 Installation Instruction
