IR-TEC International Ltd.

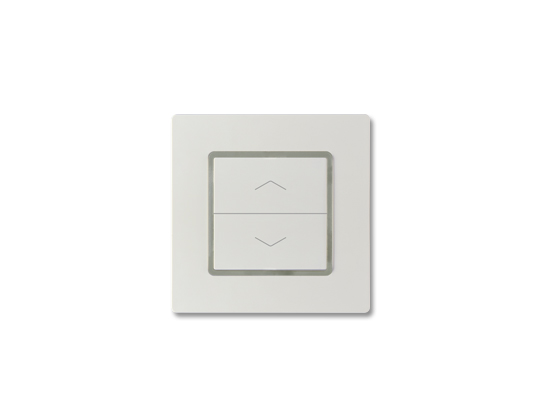

ON-PBD‑815W
OS-NET Button

The ON‑PBD‑815W is an optional device of IR-TEC's OS‑NET wireless mesh network solution.

This device is exclusively designed to replace an existing wall switch/dimmer to broadcast manual on/off/dim control commands to the assigned group lighting, while also function as a network node..

This sleek, low profile OS-NET device can be mounted into a standard EURO wall box.

Applicable Remote
SRP-281	Full functionality

More about OS-NET

Features
Downloads

Power: 230 VAC
Channel: 1-channel
Setting: Remote (IR)
Mount: EURO
Connection: Terminal block
Color: White
Compliance: CE, UKCA

230 VAC line voltage power operating
Low profile mounting with standard EURO box
Screwless snap-on Decora wall plate supplied
Dual-color LED to indicate network connection
Can be assigned to control up to 4 lighting groups

Product Information

Programming Guide
EZ-GROUP Guide
ON-PBD-815W Datasheet
ON-PBD-815W Installation Instruction

Design tools

CAD Symbols

Features

Power: 230 VAC
Channel: 1-channel
Setting: Remote (IR)
Mount: EURO
Connection: Terminal block
Color: White
Compliance: CE, UKCA

230 VAC line voltage power operating
Low profile mounting with standard EURO box
Screwless snap-on Decora wall plate supplied
Dual-color LED to indicate network connection
Can be assigned to control up to 4 lighting groups

Download

Product Information

Programming Guide
EZ-GROUP Guide
ON-PBD-815W Datasheet
ON-PBD-815W Installation Instruction

Design tools

CAD Symbols
