Wall Switch Sensor
0-10V On-off BMS/BA| Model | Power | Sensing Tech | Output | Setting | Mount | Connection | Pole | Compliance | |
 |
LDD-700S Dual-Tech Wall Switch Sensor |
120‑277 VAC | PIR+HFD | Switched line voltage (hybrid) and 0-10V | Manual | NEMA | Lead wire | 1-pole | uL, FCC, CA24 |
| Model | Power | Sensing Tech | Output | Setting | Mount | Connection | Pole | Compliance | |
 |

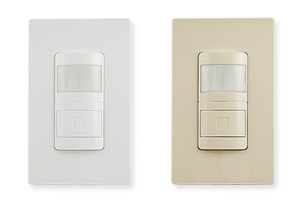

LBS-700S LBS-700N Wall Switch Sensor |
120-277 VAC | PIR | Switched line voltage (hybrid) | Manual | NEMA | Lead wire | 1-pole | uL, CA24 |
 |

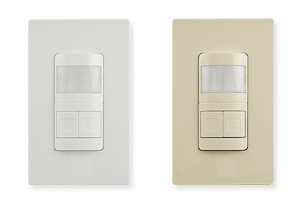

LBT-700S LBT-700N Wall Switch Sensor |
120-277 VAC | PIR | Switched line voltage (hybrid) | Manual | NEMA | Lead wire | 2-pole | uL, CA24 |
 |

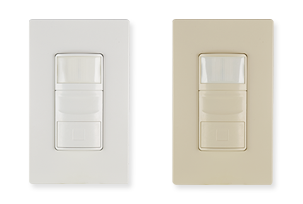

LDS-700S Dual-Tech Wall Switch Sensor |
120-277 VAC | PIR+HFD | Switched line voltage (hybrid) | Manual | NEMA | Lead wire | 1-pole | uL, FCC, CA24 |
 |

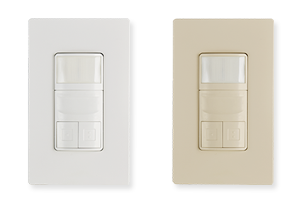

LDT-700S Dual-Tech Wall Switch Sensor |
120-277 VAC | PIR+HFD | Switched line voltage (hybrid) | Manual | NEMA | Lead wire | 2-pole | uL, FCC, CA24 |
| Model | Power | Sensing Tech | Output | Setting | Mount | Connection | Pole | Compliance | |
|
BBS-700S Wall Switch Sensor |
12-24 VDC | PIR | Isolated dry contact | Manual | NEMA | Lead wire | 1-pole | uL, CA24 |
|
BBS-702S Wall Switch Sensor with MMC |
12-24 VDC | PIR | Isolated dry contact and active low | Manual | NEMA | Lead wire | 1-pole | uL, CA24 |
|
BBT-700S Wall Switch Sensor |
12-24 VDC | PIR | Isolated dry contact | Manual | NEMA | Lead wire | 2-pole | uL, CA24 |
|
BBT-702S Wall Switch Sensor with MMC |
12-24 VDC | PIR | Isolated dry contact and active low | Manual | NEMA | Lead wire | 2-pole | uL, CA24 |
|
BDS-700S Dual-Tech Wall Switch Sensor |
12-24 VDC | PIR+HFD | Isolated dry contact | Manual | NEMA | Lead wire | 1-pole | uL, FCC, CA24 |
|
BDT-700S Dual-Tech Wall Switch Sensor |
12-24 VDC | PIR+HFD | Isolated dry contact | Manual | NEMA | Lead wire | 2-pole | uL, FCC, CA24 |
