IR-TEC International Ltd.

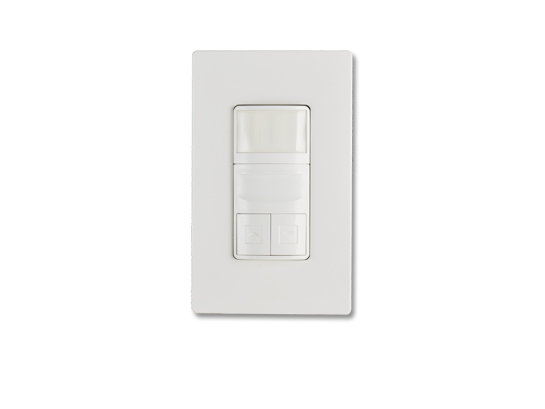

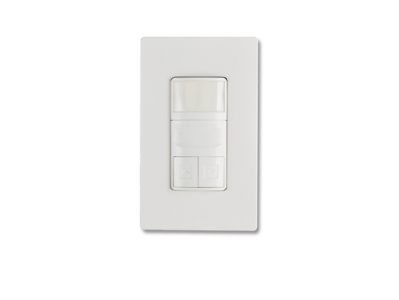

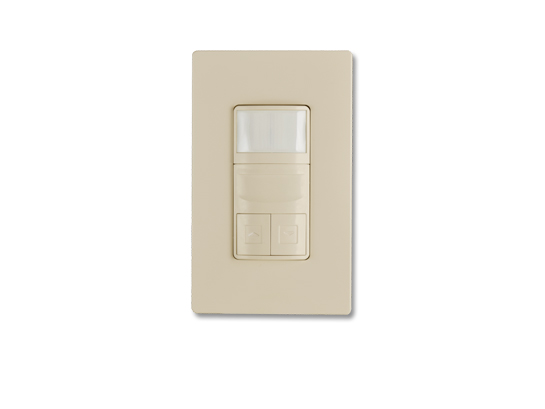

LDD-700S
Dual-Tech Wall Switch Sensor

The LDD-700S of the WALLSENZR family is a dual technology line voltage wall switch sensor with 0‑10V dimming output that not only can automatically turn lights ON/OFF based on occupancy or vacancy sensing control, but also allow the user to manually adjust the lighting level as required.

This wall switch combines digital Passive Infrared (PIR) and High Frequency Doppler (HFD) sensing technologies into an aesthetically pleasing housing to provide second-to-none occupancy/vacancy sensing based lighting control for all applications.

The LDD-700S provides 1 pole of hybrid switching control for all types of lighting.

WALLSENZR Brochure

Features
Downloads

Power: 120‑277 VAC
Sensing Tech: PIR+HFD
Output: Switched line voltage (hybrid) and 0-10V
Setting: Manual
Mount: NEMA
Connection: Lead wire
Pole: 1-pole
Compliance: uL, FCC, CA24

Dual‑tech wall switch sensor with 0‑10V dimming
Occupancy/Vacancy sensor control convertible
Dual‑tech or single HFD sensing mode switchable
Front accessible sensor operation configurations
Aesthetics pleasing sensor front without open grids
4 levels of HFD sensitivity setting programmable
180° field of view with coverage exceeds 100 sq. m.
Specialized lens provides vandalism protection
Accu‑Set digital potentiometer sensor settings
Dual Hybrid‑Switching technology for HIC load control
Screwless wall plate offers high end appearance

Product Information

LDD-700 Datasheet
LDD-700 Installation Instruction

Design tools

CAD Symbols

Features

Dual‑tech wall switch sensor with 0‑10V dimming
Occupancy/Vacancy sensor control convertible
Dual‑tech or single HFD sensing mode switchable
Front accessible sensor operation configurations
Aesthetics pleasing sensor front without open grids
4 levels of HFD sensitivity setting programmable
180° field of view with coverage exceeds 100 sq. m.
Specialized lens provides vandalism protection
Accu‑Set digital potentiometer sensor settings
Dual Hybrid‑Switching technology for HIC load control
Screwless wall plate offers high end appearance
