IR-TEC International Ltd.

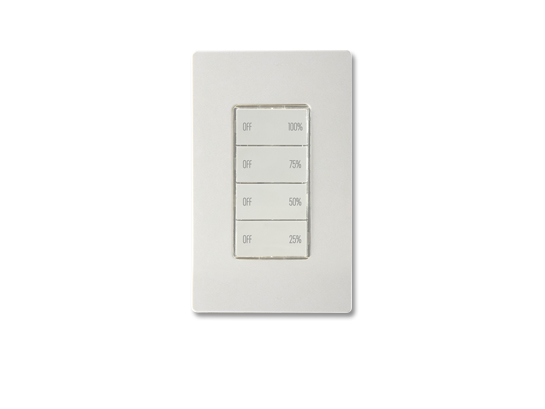

ON-PBD‑709W
OS-NET Scene Controller

The ON‑PBD‑709W is a wireless scene controller designed to provide multi-group, multi-level scene control for IR-TEC's OS‑NET lighting control system.

This sleek, low profile OS-NET device can be mounted into a standard NEMA wall box.

Applicable Remote
SRP-281	Full functionality

More about OS-NET

Features
Downloads

Power: 120-277 VAC
Channel: 4-channel
Setting: Remote (IR)
Mount: NEMA
Connection: Lead wire
Color: White
Compliance: uL, FCC, CA24

Line voltage powered wireless control device
Low profile mounting with standard NEMA box
Screwless snap-on Decora wall plate supplied
Each level button can connect up to 4 groups
Different buttons can control different group(s)
Dual-color LED to indicate network connection

Product Information

Programming Guide
EZ-GROUP Guide
ON-PBD-709W Datasheet
ON-PBD-709W Installation Instruction

Features

Power: 120-277 VAC
Channel: 4-channel
Setting: Remote (IR)
Mount: NEMA
Connection: Lead wire
Color: White
Compliance: uL, FCC, CA24

Line voltage powered wireless control device
Low profile mounting with standard NEMA box
Screwless snap-on Decora wall plate supplied
Each level button can connect up to 4 groups
Different buttons can control different group(s)
Dual-color LED to indicate network connection

Download

Product Information

Programming Guide
EZ-GROUP Guide
ON-PBD-709W Datasheet
ON-PBD-709W Installation Instruction
