IR-TEC International Ltd.

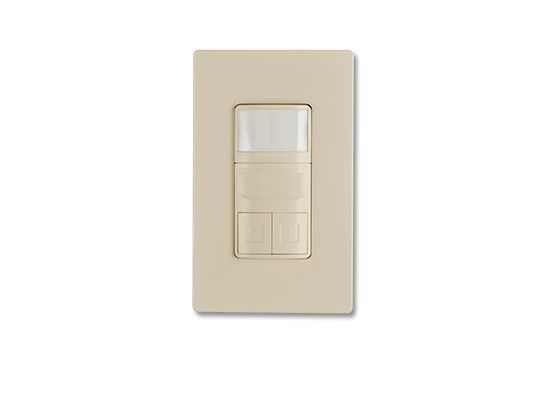

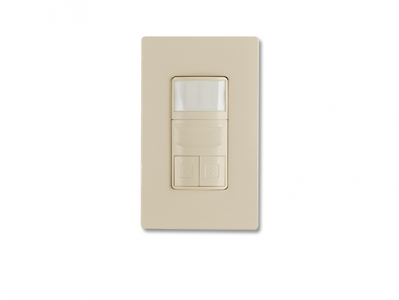

BDT-700S
Dual-Tech Wall Switch Sensor

The BDT-700S of the WALLSENZR family is a 2 pole dual technology low voltage wall switch sensor designed to fit in a standard NEMA wall box.

This wall switch combines digital Passive Infrared (PIR) and High Frequency Doppler (HFD) sensing technologies into an aesthetically pleasing housing to provide second-to-none occupancy/vacancy sensing based lighting control for all applications.

The BDS-700S provides 2 isolated dry contact to control the load through the connected Power Pack of BMS.

WALLSENZR Brochure

Features
Downloads

Power: 12‑24 VDC
Sensing Tech: PIR+HFD
Output: Isolated dry contact
Setting: Manual
Mount: NEMA
Connection: Lead wire
Pole: 2-pole
Compliance: uL, FCC, CA24

Occupancy‑Vacancy sensor changeable control
Dual‑tech or single HFD sensing mode switchable
Front accessible sensor operation configurations
No grid opening - aesthetics pleasing sensor front
4 levels of HFD sensitivity setting programmable
180° field of view with coverage exceeds 100 sq. m.
Specialized lens provides vandalism protection
Accu‑Set digital potentiometer sensor settings
Dual isolated dry contact relay outputs available
Screwless wall plate offers high end appearance
Low cut back cover provides more wiring space

Product Information

BDT-700 Datasheet
BDT-700 Installation Instruction

Design tools

CAD Symbols

Features

Power: 12‑24 VDC
Sensing Tech: PIR+HFD
Output: Isolated dry contact
Setting: Manual
Mount: NEMA
Connection: Lead wire
Pole: 2-pole
Compliance: uL, FCC, CA24

Occupancy‑Vacancy sensor changeable control
Dual‑tech or single HFD sensing mode switchable
Front accessible sensor operation configurations
No grid opening - aesthetics pleasing sensor front
4 levels of HFD sensitivity setting programmable
180° field of view with coverage exceeds 100 sq. m.
Specialized lens provides vandalism protection
Accu‑Set digital potentiometer sensor settings
Dual isolated dry contact relay outputs available
Screwless wall plate offers high end appearance
Low cut back cover provides more wiring space

Download

Product Information

BDT-700 Datasheet
BDT-700 Installation Instruction

Design tools

CAD Symbols
