LOS‑505SF LOS-505SW
Occupancy Sensor
The LOS‑505SF (fixture integration) and LOS-505SW (IP-66 fixture integration) are line voltage occupancy sensors with control logic in reverse of typical occupancy sensing control. A pair of voltage free, normally closed (NC) dry contact outputs will be open for a period of programmable delay times when the sensor detects occupancy.

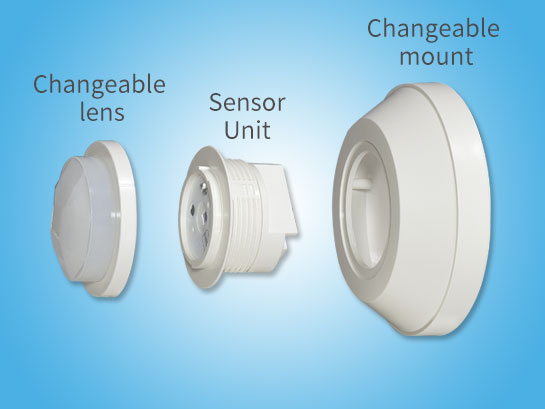

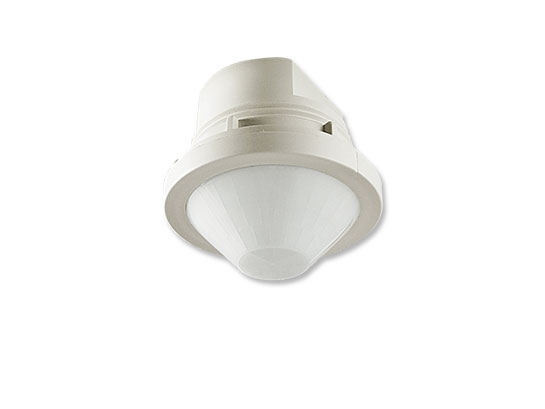

The sensor can be mounted on the ceiling, or integrated with a lighting fixture in various formats via specific mounting brackets available.
Different lenses can be applied to provide specific coverage at different mounting heights.
| Mounting brackets for LOS-505SF | ||

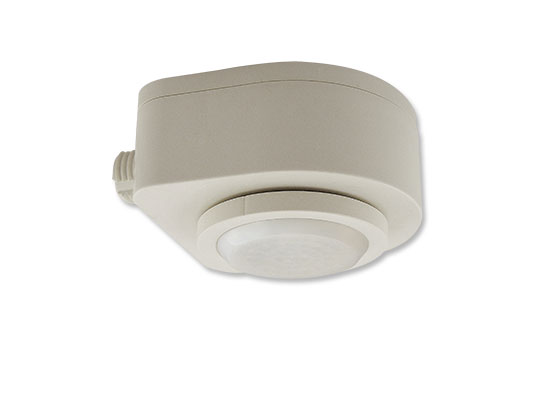

| EMB‑500 | Fixture external |  |

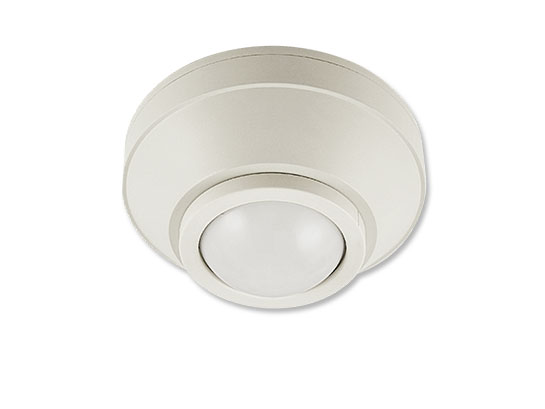

| SMB‑500 | Ceiling surface |  |

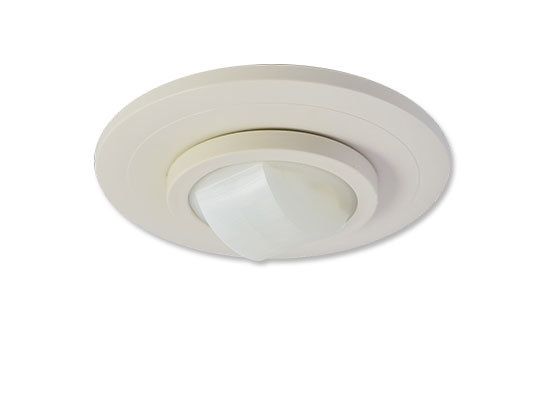

| CMB‑500 | Junction box |  |

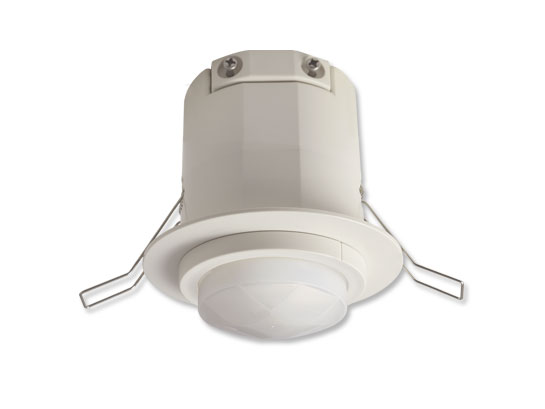

| LMB‑500 | Ceiling recess with cable strain relief |  |
| Mounting brackets for LOS-505SW (IP-66) | ||

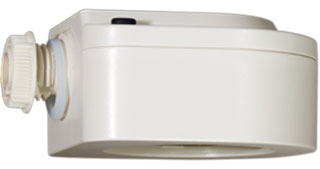

| PMB‑500 | IP‑66 fixture external |  |
| Lens Options | Coverage | |
| Lens A Standard |
 |
 |
|
Lens B |
|
 |
| Lens C High Bay |
|
 |
| Lens D Standard |
 |
 |
| Lens F Extra Wide |
 |
 |
| Lens G * Aisle Way |
 |
 |
| Lens H High Bay |
 |
 |
| Lens L * Long Aisle |
|
 |
| * Not for IP-66 application | ||
| Mounting brackets for LOS-505SF | ||
| EMB‑500 | Fixture external | |
| SMB‑500 | Ceiling surface | |
| CMB‑500 | Junction box | |
| LMB‑500 | Ceiling recess with cable strain relief | |
| Mounting brackets for LOS-505SW (IP-66) | ||
| PMB‑500 | IP‑66 fixture external | |
| Lens Options | Coverage | |
| Lens A Standard |
|
|
|
Lens B |
|
|
| Lens C High Bay |
|
|
| Lens D Standard |
|
|
| Lens F Extra Wide |
|
|
| Lens G * Aisle Way |
|
|
| Lens H High Bay |
|
|
| Lens L * Long Aisle |
|
|
| * Not for IP-66 application | ||
