IR-TEC International Ltd.

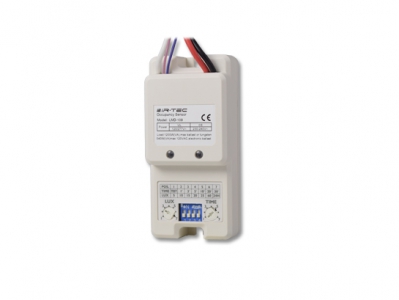

LMD-109

Line Voltage HFD Fixture Internal Sensor

The LMD‑109 is a line voltage occupancy sensor designed for OEM luminaire integration with 0-10V output to provide occupancy sensing based on/off switching or multi‑mode, bi‑level dimming control.

This occupancy sensor utilizes the advanced High Frequency Doppler (HFD) technology which is capable of detecting the occupant's presence and movement through non‑metallic enclosure, such as plastic cover or diffuser.

Features
Downloads

120‑277 VAC line voltage operation
High Frequency Doppler sensing technology
Hybrid switching for controlling loads with HIC
0‑10V output for bi‑level dimming control
4 control modes selectable via DIP switch settings
Accu-Set potentiometer for quick and easy setting
4 levels of programmable HFD sensitivity settings
Ambient light sensor to inhibit unneeded light
Low profile case for slim lighting fixture assembly

Product Information

LMD-109 Datasheet
LMD-109 Installation Instruction

Features

120‑277 VAC line voltage operation
High Frequency Doppler sensing technology
Hybrid switching for controlling loads with HIC
0‑10V output for bi‑level dimming control
4 control modes selectable via DIP switch settings
Accu-Set potentiometer for quick and easy setting
4 levels of programmable HFD sensitivity settings
Ambient light sensor to inhibit unneeded light
Low profile case for slim lighting fixture assembly

Download

Product Information

LMD-109 Datasheet
LMD-109 Installation Instruction
