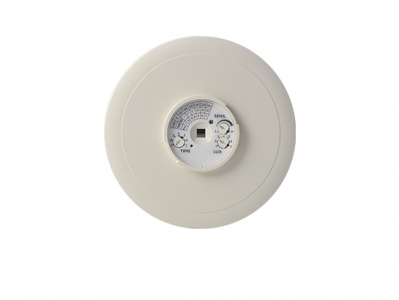

BDS‑6xx Series
Low Voltage Dual‑Tech Occupancy Sensor
The BDS type of the TRANS‑DUO sensor family are low voltage dual technology occupancy sensors designed with isolated dry contact output for load switching through a power pack or a building management system for energy efficient lighting control. These sensors combine digital Passive Infrared (PIR) and a High Frequency Doppler (HFD) sensing technologies together in one housing.
All TRANS‑DUO sensors are available with interchangeable lenses.
| Models | Tech | ALS | Power | Output | Wiring | Control |
| BDS‑600SS b | PIR+HFD | ● | 12‑24 VDC | IDC | Wire leads | For occupancy based lighting and BMS control |
| BDS‑610SS b | PIR+HFD | ● | 12‑24 VDC | IDC | Terminal block | For occupancy based lighting and BMS control |
| b - lens code | ||||||
| LEGENDS: PIR - Passive infrared HFD - High frequency doppler IDC - Isolated dry contact |

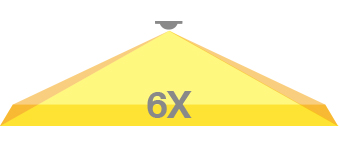

| Lens Options | Code | Coverage (for PIR) | |

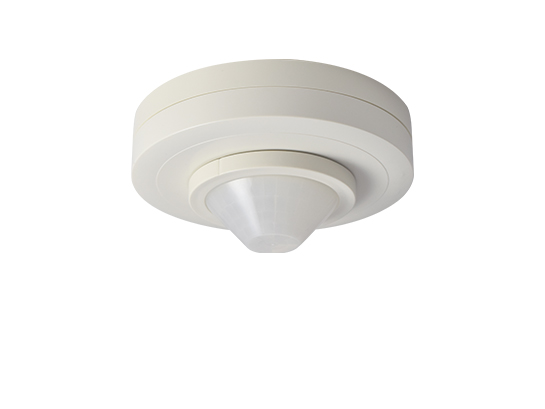

| Standard Cone |
A |  |
 |
| Extra Wide Cone |
B |  |
|

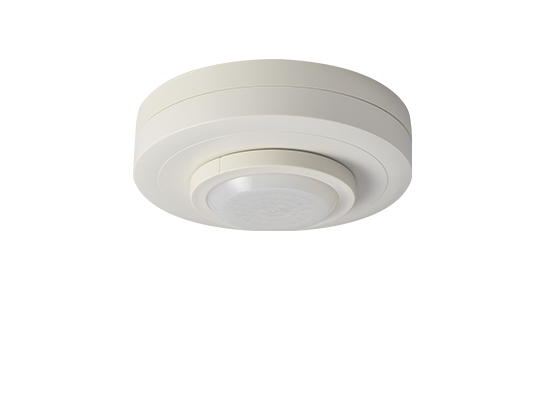

| Standard Flat Round |
D |  |
 |

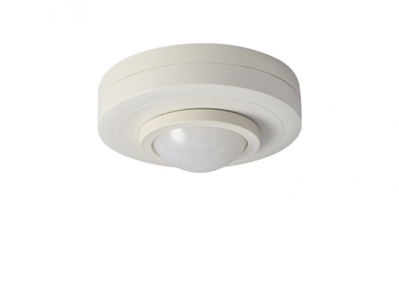

| Extra Wide Dome |
F |  |
 |

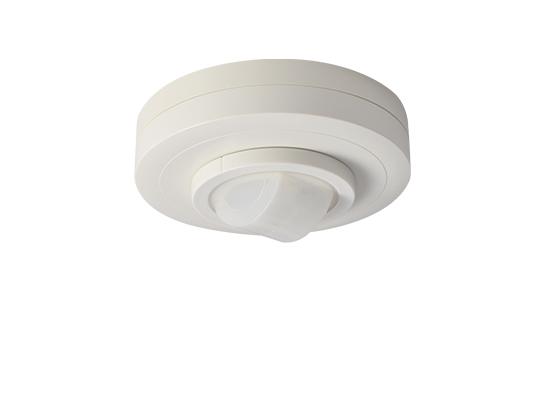

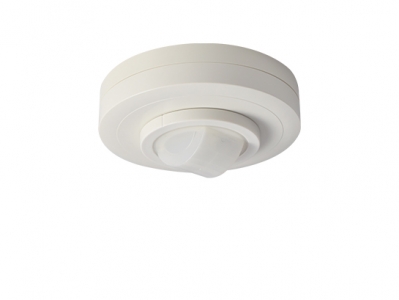

| Aisle Way Arch |
G |  |
 |
| Long Aisle Arch |
L |  |
|
| Models | Tech | ALS | Power | Output | Wiring | Control |
| BDS‑600SS b | PIR+HFD | ● | 12‑24 VDC | IDC | Wire leads | For occupancy based lighting and BMS control |
| BDS‑610SS b | PIR+HFD | ● | 12‑24 VDC | IDC | Terminal block | For occupancy based lighting and BMS control |
| b - lens code | ||||||
| LEGENDS: PIR - Passive infrared HFD - High frequency doppler IDC - Isolated dry contact |
| Lens Options | Code | Coverage (for PIR) | |
| Standard Cone |
A | |
|
| Extra Wide Cone |
B | |
|
| Standard Flat Round |
D | |
|
| Extra Wide Dome |
F | |
|
| Aisle Way Arch |
G | |
|
| Long Aisle Arch |
L | |
|
