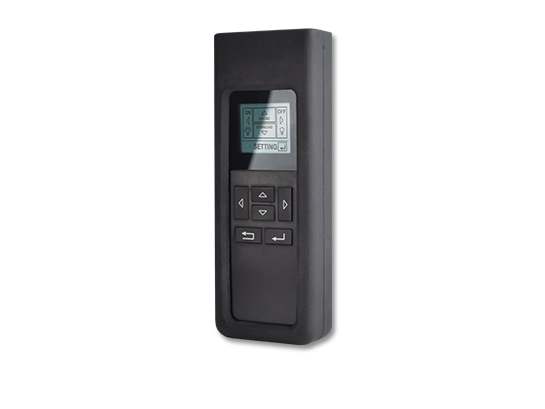

SRP-280
TRANS Remote Programmer

The SRP-280 is a 2-way IR remote programmer designed for configuring the TRANS remote programmable sensors.

The handheld programming tool not only allows you to upload/download all setting of TRANS remote programmable sensors, but also turn on/off/dim the lighting controlled by the sensor via simple and intuitive operation.

Power: 2x AAA battery
Technology: IR
IR range: 10m
Screen: Yes
Upload: Yes
Download: Yes
Compliance: UKCA, CE
  • Exceptionally long range 2‑way communication
  • Intuitive instructions enable easy programming
  • Upload and Download status acknowledgement
  • Easy to duplicate one sensor setting to another
  • Set SmartDIM level to deliver optimum lighting
  • Capable of reading the current dim output level
  • Set ambient light level for daylight harvesting
  • Set high/low dim level output for bi‑level control
  • EZ‑SET profiles enable setting multiple sensors
  • Various time settings for burn-in test and operation
  • Rubber jacket provides superb drop protection
TRANS Programmable Sensors
Device No. Model series Required SRP‑280 FW Version **New features as below
006 HRD-600 3.7. and above Device: 4.0 and above
SRP: 5.3 and above
001 LRD‑509
LRD‑609
3.7 and above Device: 5.0 and above
SRP: 5.3 and above
029 LRD‑309S
LRD-309SP
3.7 and above Device: 3.3 and above
SRP: 5.3 and above
034 LRS-508 3.7 and above Coming soon
011 LRS-509 3.7 and above Device: 5.0 and above
SRP: 5.3 and above
033 LRS‑202SP
LRS-209SP
3.7 and above Coming soon
037 MRD-734S 4.0 and above Device: 3.0 and above
SRP: 5.3 and above
013 MRD-510
MRD-600
3.7 and above Device: 4.0 and above
SRP: 5.3 and above
025 MRD-210S
MRD-200SP
3.7 and above Coming soon
037 MRD-124S 4.0 and above Coming soon
002 BRD-500
BRD-510
3.7 and above Device: 2.0 and above
SRP: 5.3 and above
003 BED-500
​BED-510
3.7 and above ---


Retrieve remote firmware info as below:

1. Press ENTER button on Main Menu to enter SETTING page.
2. Press DOWN button and navigate down until you find DEVICE INFO.
3. Press LEFT or RIGHT button and find REMOTE, and press ENTER.
4. Remote info will be shown.

Retrieve device no. info as below:

1. Press ENTER button on Main Menu to enter SETTING page.
2. Press DOWN button and navigate down until you find DEVICE INFO.
3. Press LEFT or RIGHT button and find DEVICE, and press enter.
4. Aim at the target device you wish to download info from, press ENTER and wait for screen to show DOWNLOAD OK.
5. Press ENTER to show data.

**SRP-280 FW5.3 have the following new features (refer to table above for compatible devices):

- DALI slave (only available on MRD-510)
​- Daylight override and override level
- Minimum dim
- Manual dimming



Product Information
SRP-280 Operation Instruction
TRANS Remote Programmer Update V5.4
