OS-NET Devices

IR‑TEC's OS‑NET wireless lighting control network is formed by a number of wirelessly linked OS‑NET devices. The OS‑NET devices refer to the products built with OS‑NET wireless networking capability, which include OS‑NET Sensor and OS‑NET Button.

OS‑NET Sensor (ONS)
The OS‑NET Sensors (ONS) are fundamental OS‑NET devices. Each ONS is packed with multiple sensing control functionalities, including occupancy/vacancy sensing, ambient light sensing, 0‑10V or DALI dimming, together with wireless mesh networking capabilities required for smart lighting control. The ONS are available in two different form factors, namely Omni ONS and Mini ONS.
Omni‑ONS
The Omni ONS can be flexibly integrated with an OEM luminaire or mounted on the ceiling in different options. Changeable lens options allow the Omni ONS to be used from typical office to high bay applications with different coverage.

The following mounting options are available for Omni ONS to integrate with luminaires or lighting circuits.

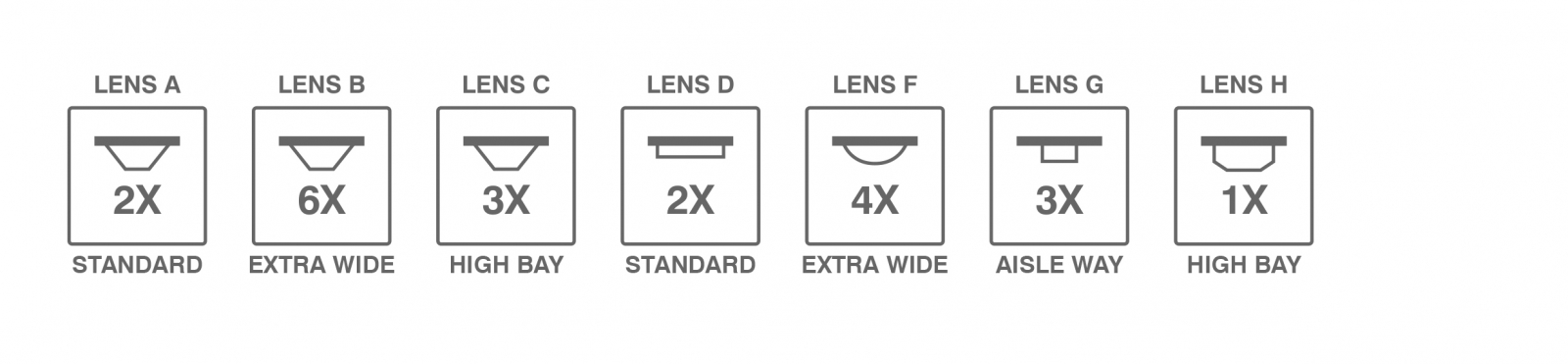

The following lens options are available for Omni-ONS to provide different coverage at various mounting heights.
Model Available Device Description & Functionality
ON‑LRD‑509S Series Line Voltage OS-NET sensor with SLV & AO
ON‑LRD‑609SA Series Line Voltage OS-NET sensor with SLV & AO
ON‑MRD‑510S Series SmartDALI OS-NET sensor with DALI broadcast
ON‑MRD‑514S Series SmartDALI OS-NET sensor with DALI broadcast
ON‑MRD‑600SA Series SmartDALI OS-NET sensor with DALI broadcast
ON‑BRD‑500/510S Series Low Voltage OS-NET sensor with AO

Mini‑ONS
The Mini ONS is a low profile OS-NET Sensor with a small flat lens specially designed for through-hole assembly with office luminaire such as Troffer or side-lit LED panel light.
Model Available Device Description & Functionality
ON‑LRD‑209S Line Voltage OS-NET sensor with SLV & AO
ON‑LRD‑209SP Line Voltage OS-NET sensor with SLV & AO, IP‑65 fixture attached
ON‑MRD‑210S SmartDALI OS-NET sensor with DALI broadcast
ON‑MRD‑200SP SmartDALI OS-NET sensor with DALI broadcast, IP‑65 fixture attached

Zhaga-ONS
This sensor is a Zhaga Book 18 Type A compatible OS-NET Sensors for easy twist and lock connection on the luminaire.
Model Available Device Description & Functionality
ON‑MRD‑734SZ SmartDALI OS-NET sensor with DALI broadcast, IP‑66 fixture attached
ON‑BRD‑734SZ Low voltage OS-NET sensor, IP‑66 fixture attached



OS‑NET Button (ONB)
The OS‑NET Button is an optional OS‑NET device.

The ONB can be mounted into a standard wall box, as a line voltage powered wireless dimmer switch to provide manual on/off and dimming control to the lighting group assigned.

The main function of the ONB is to allow the user to control the lights as required by broadcasting the control commands to the ONS of the same group.


Model Available Device Description & Functionality
ON‑PBD‑705W Line Voltage OS-NET button, NEMA wall box, 120/277VAC
ON‑PBD‑708W Line Voltage 4-Channel OS-NET button, NEMA wall box, 120/277VAC
ON‑PBD‑815W Line Voltage OS-NET button, EURO wall box, 230VAC
