IR-TEC International Ltd.

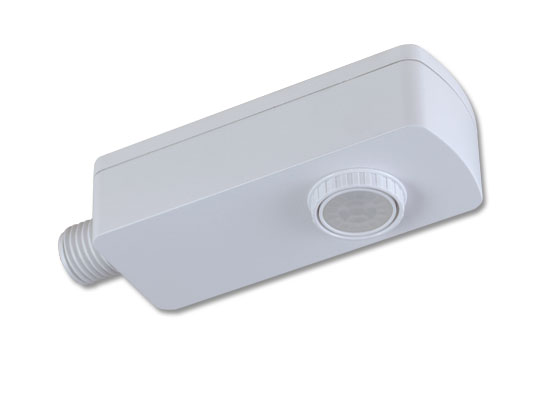

MRD‑200SP
SmartDALI Occupancy Sensor

The MRD‑200SP is a low profile, two‑way IR remote programmable DALI occupancy sensors featuring bi‑level StepDIM or continuous SmartDIM control to lighting with DALI driver or ballast. The sensor can be powered by either line voltage or DALI bus to provide multi‑scheme occupancy sensing control through DALI Broadcast commands.

This batten mount sensor can be externally assembled with an OEM luminaires through a 1/2" hole. A low profile flat lens provides excellent sensing capability for office activities within its coverage.

Applicable Remote
SRP-280	Full functionality
URP-100	Manual ON/OFF/DIM, TIME/LUX setting

TRANS Brochure

Features
Downloads

Power: 230-240 VAC or DALI bus power
Sensing Tech: PIR
Output: DALI broadcast
Setting: Remote (IR)
Mount: Batten mount
Connection: Lead wire
Coverage: Fixed
Compliance: UKCA, CE

Omni‑directional pyroelectric infrared sensor
Digital data control ALS for daylight harvesting
2‑way IR remote programmable sensor setting
Available with AC line voltage or DALI bus power
SmartDIM or multi-level high/low dim control
Remote programmable SmartDIM level setting
Up to 10m of remote programmable range
Provides up to 100mA of DALI bus power supply
Beeping or light flashing acknowledgment
Ideal for linear, batten mount or IP-65 luminaires

Product Information

MRD-200SP Datasheet
MRD-200SP Installation Instruction

Features

Power: 230-240 VAC or DALI bus power
Sensing Tech: PIR
Output: DALI broadcast
Setting: Remote (IR)
Mount: Batten mount
Connection: Lead wire
Coverage: Fixed
Compliance: UKCA, CE

Omni‑directional pyroelectric infrared sensor
Digital data control ALS for daylight harvesting
2‑way IR remote programmable sensor setting
Available with AC line voltage or DALI bus power
SmartDIM or multi-level high/low dim control
Remote programmable SmartDIM level setting
Up to 10m of remote programmable range
Provides up to 100mA of DALI bus power supply
Beeping or light flashing acknowledgment
Ideal for linear, batten mount or IP-65 luminaires

Download

Product Information

MRD-200SP Datasheet
MRD-200SP Installation Instruction
