IR-TEC International Ltd.

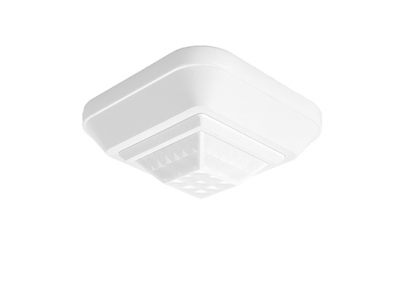

LC‑360HI
PIR SenSwitch

LC‑360HI is a 360° ceiling mount passive infrared SenSwitch with 16A switching capacity for heavy duty control of commercial or industrial applications. This sensor employs an innovative hybrid switching control technology to switch the load with high inrush current.

Features
Downloads

Power: 100‑250 VAC
Sensing Tech: PIR
Output: Switched line voltage (hybrid)
Setting: Manual
Mount: Ceiling surface
Connection: Lead wire
Coverage: Fixed
Compliance: CE

100‑250 VAC line voltage powered
Surface mount technology production
Hybrid‑Switching for controlling loads with HIC
Built‑in ambient light sensor
Second‑to‑none square detection range
Easy TIME delay and LUX level selection
Automatic temperature compensation
Detection range mask label provided
Superior RFI/EMI immunity protection

Product Information

LC-360HI Installation Instruction

Features

Power: 100‑250 VAC
Sensing Tech: PIR
Output: Switched line voltage (hybrid)
Setting: Manual
Mount: Ceiling surface
Connection: Lead wire
Coverage: Fixed
Compliance: CE

100‑250 VAC line voltage powered
Surface mount technology production
Hybrid‑Switching for controlling loads with HIC
Built‑in ambient light sensor
Second‑to‑none square detection range
Easy TIME delay and LUX level selection
Automatic temperature compensation
Detection range mask label provided
Superior RFI/EMI immunity protection

Download

Product Information

LC-360HI Installation Instruction
