LMS‑5xx Series

Line Voltage Occupancy Sensor

The LMS type of the TRANS‑HFD sensor family are line voltage occupancy sensors designed for all-purposes energy efficient lighting control. These sensors employ an advanced High Frequency Doppler (HFD) sensing technology to provide superior sensing performance of minor motions, such as typing, writing, or reading.

All TRANS‑HFD sensors are available with various mounting options.





  • High Frequency Doppler sensing technology
  • 120‑277 VAC universal line voltage powered
  • Hybrid switching for controlling loads with HIC
  • Accu‑Set potentiometer for quick and easy setting
  • 4 levels of HFD sensitivity setting programmable
  • Ambient light sensor to inhibit unneeded lighting
  • Available with variety of mounting options
    Models Tech Power Output Setting Wiring Switching Control

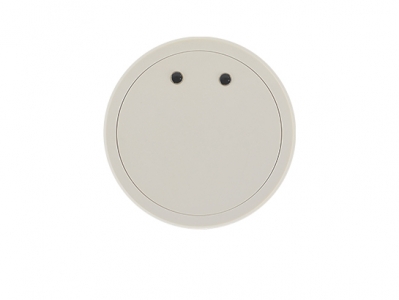

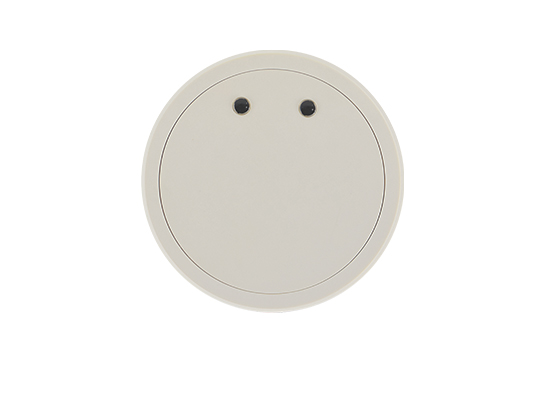

    LMS‑509S a HFD 120‑277 VAC SLV Accu‑Set pot
DIP switch
Wire leads Hybrid On/off switching
     a - mount code
LEGENDS:
HFD - High Frequency Doppler     SLV - Switched line voltage
Mounting Options Code Bracket #

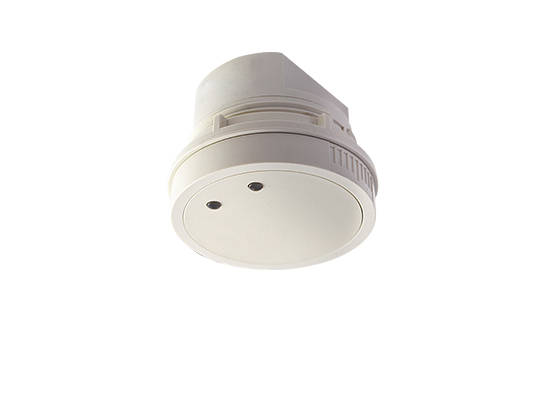

Fixture Integrated F --
IP‑66 Fixture Integrated W --

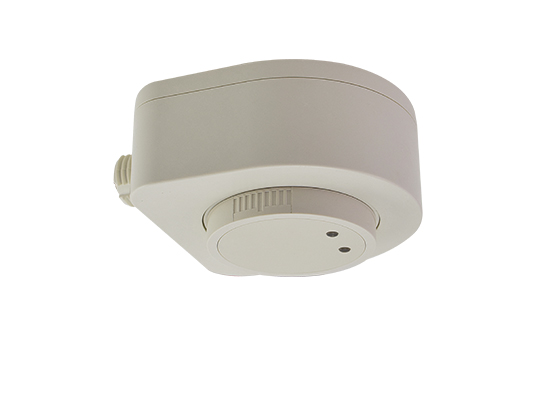

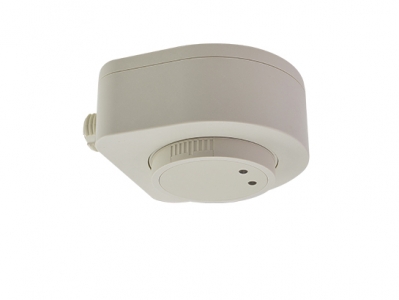

Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500

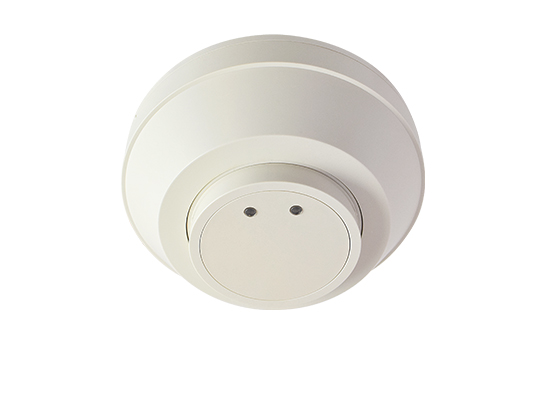

Ceiling Surface S SMB‑500

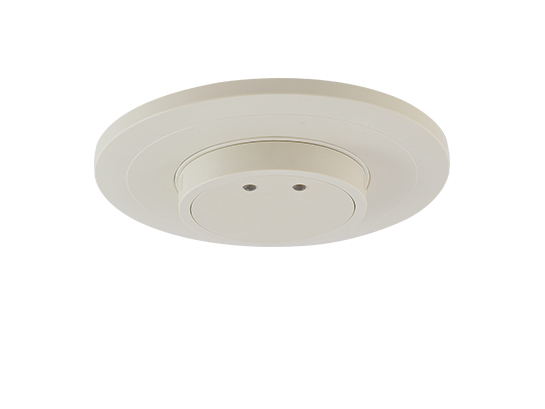

Junction Box C CMB‑500

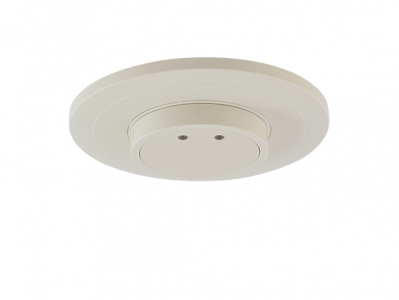

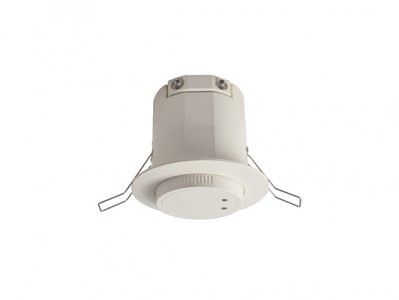

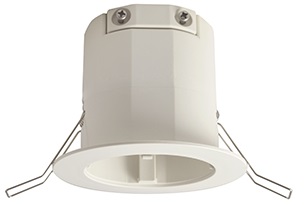

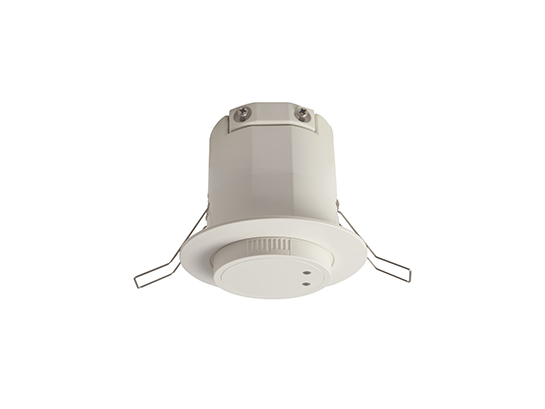

Ceiling Recess L LMB‑500

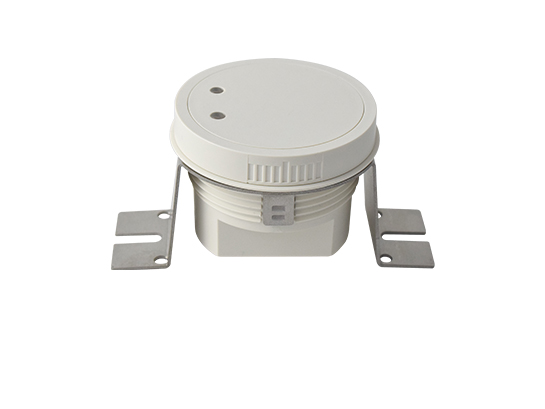

Fixture Internal I IMB‑500


Product Information
LMS-509 Datasheet
LMS-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Design tools
CAD Symbols

  • High Frequency Doppler sensing technology
  • 120‑277 VAC universal line voltage powered
  • Hybrid switching for controlling loads with HIC
  • Accu‑Set potentiometer for quick and easy setting
  • 4 levels of HFD sensitivity setting programmable
  • Ambient light sensor to inhibit unneeded lighting
  • Available with variety of mounting options

    Models Tech Power Output Setting Wiring Switching Control
    LMS‑509S a HFD 120‑277 VAC SLV Accu‑Set pot
DIP switch
Wire leads Hybrid On/off switching
     a - mount code
LEGENDS:
HFD - High Frequency Doppler     SLV - Switched line voltage

Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500
Ceiling Recess L LMB‑500
Fixture Internal I IMB‑500



Product Information
LMS-509 Datasheet
LMS-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Design tools
CAD Symbols
