IR-TEC International Ltd.

LDT‑7xx Series

Line Voltage Dual‑Tech Wall Switch Sensor

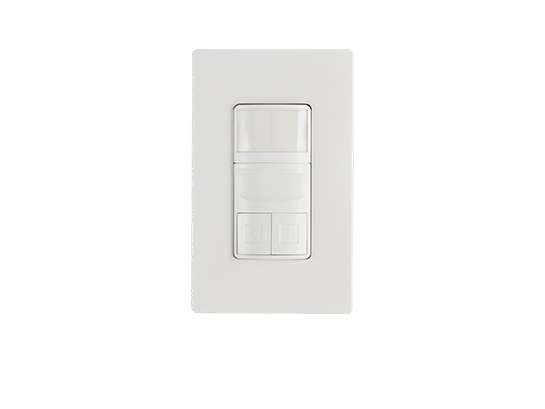

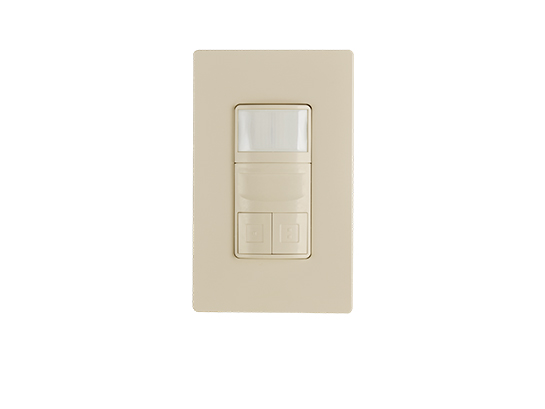

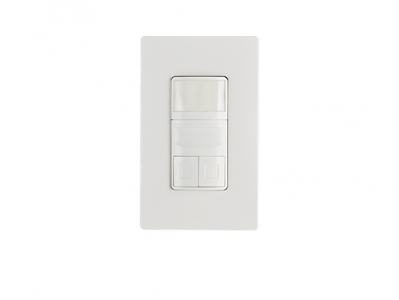

The LDT type of the WALLSENZR family are dual technology line voltage wall switch sensors for direct load switching of general lighting control. This wall switch combines digital Passive Infrared (PIR) and High Frequency Doppler (HFD) sensing technologies into an aesthetically pleasing housing to provide second-to-none occupancy/vacancy sensing based lighting control for all applications. The LDT type provide 2 poles of hybrid switching control for all types of lighting.

Occupancy‑Vacancy sensor changeable control
Dual‑tech or single HFD sensing mode switchable
Front accessible sensor operation configurations
No grid opening - aesthetics pleasing sensor front
4 levels of HFD sensitivity setting programmable
180° field of view with coverage exceeds 100 sq. m.
Specialized lens provides vandalism protection
Accu‑Set digital potentiometer sensor settings
Dual Hybrid‑Switching technology for HIC load control
Screwless wall plate offers high end appearance
Low cut back cover provides more wiring space

Models	Tech	ALS	Power	Output	Neutral Required	Ground Required	Switching	Control
LDT‑700S a	PIR+HFD	●	100‑277 VAC	SLV	YES	NO	Hybrid	On/off switching with ALS override
a - color code (W:White I:Ivory)

LEGENDS:
PIR - Passive infrared HFD - High frequency doppler SLV - Switched line voltage

Product Information

LDT-700 Datasheet
LDT-700 Installation Instruction

Design tools

CAD Symbols

Features

Occupancy‑Vacancy sensor changeable control
Dual‑tech or single HFD sensing mode switchable
Front accessible sensor operation configurations
No grid opening - aesthetics pleasing sensor front
4 levels of HFD sensitivity setting programmable
180° field of view with coverage exceeds 100 sq. m.
Specialized lens provides vandalism protection
Accu‑Set digital potentiometer sensor settings
Dual Hybrid‑Switching technology for HIC load control
Screwless wall plate offers high end appearance
Low cut back cover provides more wiring space

Series Available

Models	Tech	ALS	Power	Output	Neutral Required	Ground Required	Switching	Control
LDT‑700S a	PIR+HFD	●	100‑277 VAC	SLV	YES	NO	Hybrid	On/off switching with ALS override
a - color code (W:White I:Ivory)

LEGENDS:
PIR - Passive infrared HFD - High frequency doppler SLV - Switched line voltage

Download

Product Information

LDT-700 Datasheet
LDT-700 Installation Instruction

Design tools

CAD Symbols
