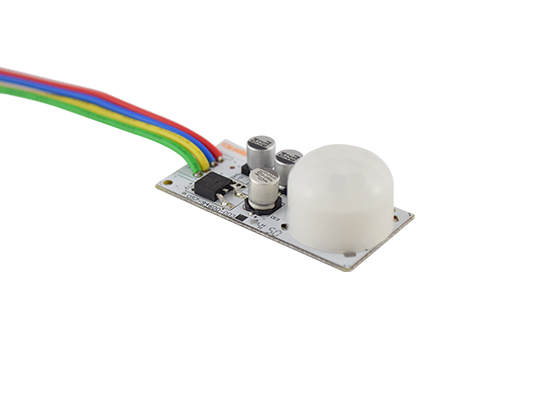

POM‑946 Series

PWM Control Occupancy Sensor Module

The POM‑946 series is an occupancy sensor module desgined to regulate the DC power supply from driver for the LED lighting. This cost effective sensor module can be easily integrated in T8 LED tube or other LED light fixture for energy efficient occupancy sensing based LED control.

The POM‑946 series is available with specific model featuring different control modes.



  • Excellent occupancy sensing capability
  • 12‑48 VDC directly powered by LED driver
  • Pulse width modulation output control
  • 2X height with 360° look down coverage
  • Control maximum up to 3 A (144 W@48 V)
  • Easy‑to‑mount and no setting required
    Models Tech ALS Power Output Applicable driver Control
    POM‑946MBW PIR 12‑48 VDC PWM CV Bi‑level on/DIM control with ALS override
    POM‑946MCW PIR 12‑48 VDC PWM CV Bi‑level on/DIM control with ALS override and Time off
    POM‑946MDW PIR - 12‑48 VDC PWM CV Bi‑level on/DIM control
    POM‑946MEW PIR - 12‑48 VDC PWM CV/CC All time on/off

LEGENDS:
PIR - Passive infrared     PWM - Pulse width modulation     CV - Constant voltage     CC - Constant voltage
Model Description
POM‑946MBW
ON-DIM
The sensor will inhibit the LED lighting when ambient light level is higher than 50 lux.
When ambient light level is lower than 20 lux, the sensor will automatically dim the LED at 30% to provide a safety night light, and turn on the LED to 100% when it detects occupancy.
The LED will be dimmed to 30% if no movement is detected within 5 minutes.
POM‑946MCW
ON-DIM-OFF
The sensor will inhibit the LED lighting when ambient light level is higher than 50 lux.
When ambient light level is lower than 20 lux, the sensor will automatically turn on the LED to 100% when it detects occupancy. If no movement is detected within 5 minutes, the sensor will dim the LED to 30% for 10 minutes.
​The LED will be switched off if no further movement is detected within 10 minutes.
POM‑946MDW
ON-DIM
The sensor will turn on the LED with 100% power when it detects occupancy, and dim to 30% if no movement is detected within 5 minutes.
POM‑946MEW
ON-OFF
The sensor will turn on the LED with 100% power when it detects occupancy, and turn off if no movement is detected within 5 minutes.

Product Information
POM-946 Datasheet

  • Excellent occupancy sensing capability
  • 12‑48 VDC directly powered by LED driver
  • Pulse width modulation output control
  • 2X height with 360° look down coverage
  • Control maximum up to 3 A (144 W@48 V)
  • Easy‑to‑mount and no setting required

    Models Tech ALS Power Output Applicable driver Control
    POM‑946MBW PIR 12‑48 VDC PWM CV Bi‑level on/DIM control with ALS override
    POM‑946MCW PIR 12‑48 VDC PWM CV Bi‑level on/DIM control with ALS override and Time off
    POM‑946MDW PIR - 12‑48 VDC PWM CV Bi‑level on/DIM control
    POM‑946MEW PIR - 12‑48 VDC PWM CV/CC All time on/off

LEGENDS:
PIR - Passive infrared     PWM - Pulse width modulation     CV - Constant voltage     CC - Constant voltage

Model Description
POM‑946MBW
ON-DIM
The sensor will inhibit the LED lighting when ambient light level is higher than 50 lux.
When ambient light level is lower than 20 lux, the sensor will automatically dim the LED at 30% to provide a safety night light, and turn on the LED to 100% when it detects occupancy.
The LED will be dimmed to 30% if no movement is detected within 5 minutes.
POM‑946MCW
ON-DIM-OFF
The sensor will inhibit the LED lighting when ambient light level is higher than 50 lux.
When ambient light level is lower than 20 lux, the sensor will automatically turn on the LED to 100% when it detects occupancy. If no movement is detected within 5 minutes, the sensor will dim the LED to 30% for 10 minutes.
​The LED will be switched off if no further movement is detected within 10 minutes.
POM‑946MDW
ON-DIM
The sensor will turn on the LED with 100% power when it detects occupancy, and dim to 30% if no movement is detected within 5 minutes.
POM‑946MEW
ON-OFF
The sensor will turn on the LED with 100% power when it detects occupancy, and turn off if no movement is detected within 5 minutes.
