IR-TEC International Ltd.

PPU‑1xx Series

Power Pack & Controller

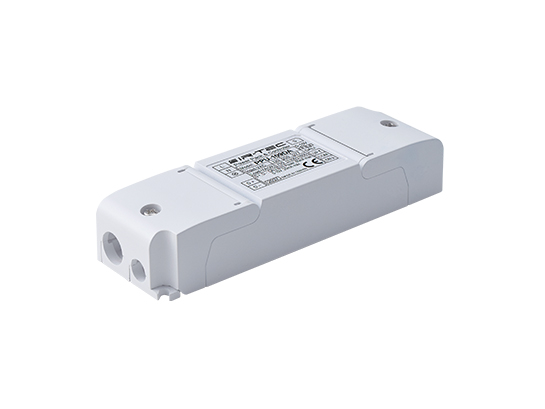

The PPU-100DP and PPU-109DA are power packs and controllers designed to provide standalone or network based smart lighting control with the connection of IR‑TEC's SmartDALI sensor.

The PPU‑100DP is a DALI power supply unit and the PPU‑109DA can be used to control DALI, 0/1‑10V or typical driver/ballast available in the market.

Class 2 switching mode power supply
120/277 VAC universal voltage power
DALI bus power supply output for sensor operation
RJ connector enables easy sensor plug-in
Push in terminal for power & control wiring
Manual control momentary contact input
Hybrid Switching technology for HIC protection*
Available with DALI, 0/1-10V*, or typical driver
* PPU-109DA only

Models	Power input	Control Output	Control input	Remarks
PPU‑100DP	120‑277 VAC	DALI	Digital	Manual control input available
PPU-109DA	120‑277 VAC	DALI, 0-10V, Switched live	Digital	Manual control input available

Product Information

PPU-100DP Datasheet
PPU-109DA Datasheet
PPU-100DP/PPU-109DA Installation Instruction

Features

Class 2 switching mode power supply
120/277 VAC universal voltage power
DALI bus power supply output for sensor operation
RJ connector enables easy sensor plug-in
Push in terminal for power & control wiring
Manual control momentary contact input
Hybrid Switching technology for HIC protection*
Available with DALI, 0/1-10V*, or typical driver
* PPU-109DA only

Series Available

Models	Power input	Control Output	Control input	Remarks
PPU‑100DP	120‑277 VAC	DALI	Digital	Manual control input available
PPU-109DA	120‑277 VAC	DALI, 0-10V, Switched live	Digital	Manual control input available
