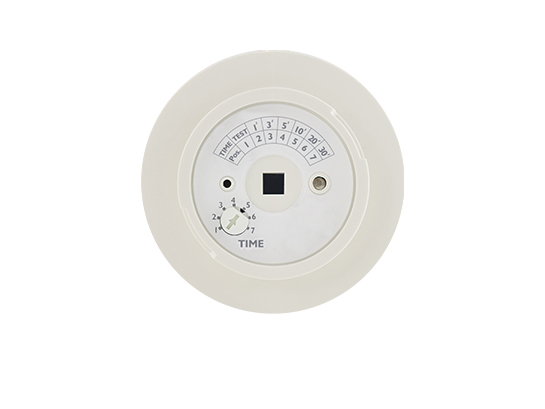

LVS‑5xx Series
Line Voltage Vacancy Sensor
The LVS type of the TRANS‑PIR sensor family are line voltage vacancysensors for designed to achieve "manual-on, auto-off absence detection" lighting control. The controlled lighting will be turned on when someone presses a connected AC power-thru push button, and the sensor will automatically shut off the light after the area is vacated for a period of time.
All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.
| Models | Tech | ALS | Power | Output | Setting | Wiring | Switching | Control |
| LVS‑508N a b | PIR | - | 220‑240 VAC | SLV | Accu‑Set pot | Wire leads | Hybrid | Manual on, auto off |
| a - mount code b - lens code | ||||||||
| LEGENDS: PIR - Passive infrared SLV - Switched line voltage |
| Mounting Options | Code | Bracket # | |
| Fixture Integrated | F | -- |  |
| IP‑66 Fixture Integrated | W | -- |  |
| Fixture External | E | EMB‑500 |  |
| IP‑66 Fixture External | P | PMB‑500 |  |
| Ceiling Surface | S | SMB‑500 |  |
| Junction Box | C | CMB‑500 |  |
| Ceiling Recess | L | LMB‑500 |  |
| Lens Options | Code | Coverage | |
| Standard Cone |
A |  |
 |
| Extra Wide Cone |
B |  |
|
| High Bay Cone |
C |  |
|
| Standard Flat Round |
D |  |
 |
| Extra Wide Dome |
F |  |
 |
| Aisle Way Arch (Not for IP-66) |
G |  |
 |
| High Bay Dome |
H |  |
 |
| Long Aisle Arch (Not for IP-66) |
L |  |
|
| Models | Tech | ALS | Power | Output | Setting | Wiring | Switching | Control |
| LVS‑508N a b | PIR | - | 220‑240 VAC | SLV | Accu‑Set pot | Wire leads | Hybrid | Manual on, auto off |
| a - mount code b - lens code | ||||||||
| LEGENDS: PIR - Passive infrared SLV - Switched line voltage |
| Mounting Options | Code | Bracket # | |
| Fixture Integrated | F | -- | |
| IP‑66 Fixture Integrated | W | -- | |
| Fixture External | E | EMB‑500 | |
| IP‑66 Fixture External | P | PMB‑500 | |
| Ceiling Surface | S | SMB‑500 | |
| Junction Box | C | CMB‑500 | |
| Ceiling Recess | L | LMB‑500 | |
| Lens Options | Code | Coverage | |
| Standard Cone |
A | |
|
| Extra Wide Cone |
B | |
|
| High Bay Cone |
C | |
|
| Standard Flat Round |
D | |
|
| Extra Wide Dome |
F | |
|
| Aisle Way Arch (Not for IP-66) |
G | |
|
| High Bay Dome |
H | |
|
| Long Aisle Arch (Not for IP-66) |
L | |
|
