MS Series
PIR Sensor Module
The MS series are multi‑purpose, ready‑to‑use passive infrared sensor modules designed to provide signal outputs for OEM integration with motion activated products. The sensor module employs a dual element pyroelectric infrared sensor and photo sensor with a compact dome lens to provide motion sensing open collector output.
The MS series is available with specific model featuring different size, detection range, and with or without ALS.
| Models | Tech | ALS | Power | Output | Detection zones |
| MS-112 | PIR | - | 5 VDC | TTL | 32 zones |
| MS-112LP | PIR | - | 2.4‑3.6 VDC | TTL | 32 zones |
| MS-320 | PIR | ● | 5 VDC | TTL | - |
| MS-320LP | PIR | ● | 3 VDC | TTL | - |
| MS-360 | PIR | ● | 5 VDC | TTL | 38 zones |
| MS-360LP | PIR | ● | 3.6 VDC | TTL | 38 zones |
| LEGENDS: PIR - Passive infrared |
| Models | Tech | ALS | Power | Output | Detection zones |

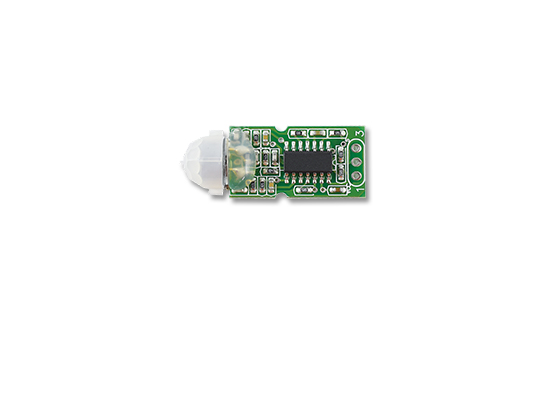

| MS-112 | PIR | - | 5 VDC | TTL | 32 zones |
| MS-112LP | PIR | - | 2.4‑3.6 VDC | TTL | 32 zones |

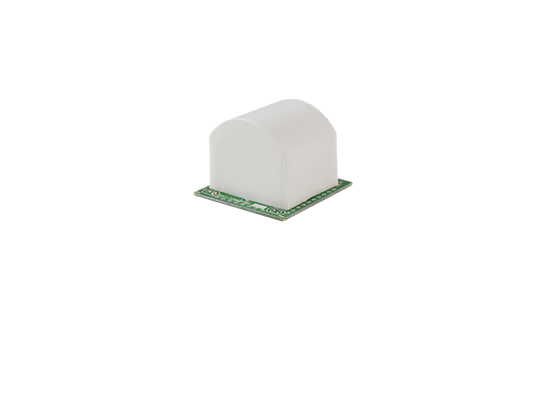

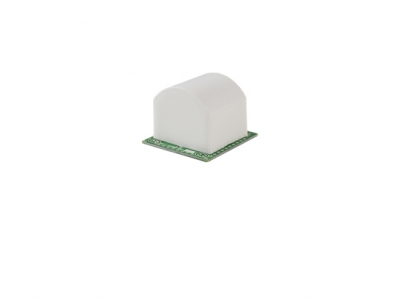

| MS-320 | PIR | ● | 5 VDC | TTL | - |
| MS-320LP | PIR | ● | 3 VDC | TTL | - |

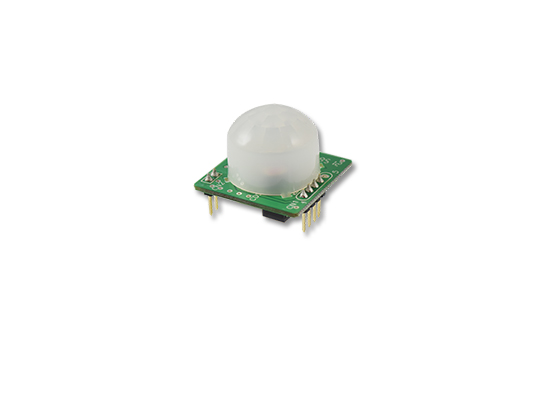

| MS-360 | PIR | ● | 5 VDC | TTL | 38 zones |
| MS-360LP | PIR | ● | 3.6 VDC | TTL | 38 zones |
| LEGENDS: PIR - Passive infrared |
