LRD‑309S Series

Line Voltage SmartDIM Occupancy Sensor

The LRD‑309S is a low profile, fixture integrated occupancy sensor designed to control 0‑10V dimmable ballasts and LED drivers. This two‑way IR remote programmable sensor is capable of providing four different occupancy sensing control schemes with fully adjustable multi‑level high/low StepDIM or SmartDIM control to the integrated fixtures.

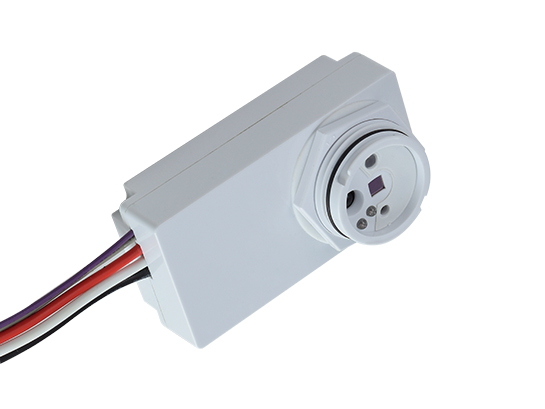

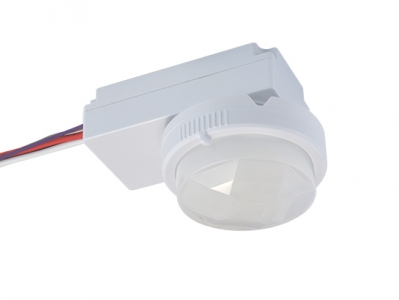

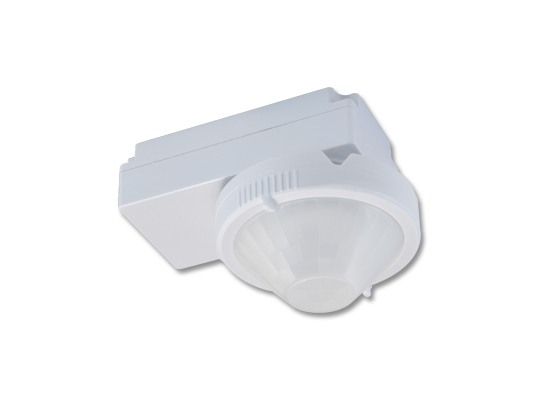

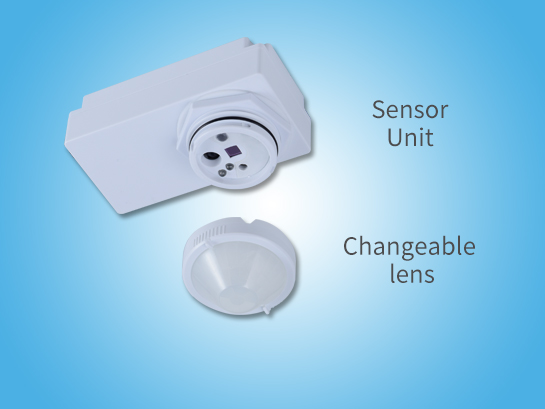

This sensor comes with a compact body design and can be easily integrated with luminaires through a 1.34" hole. The LRD‑309S series are available with interchangeable lenses.

Programming Tool - SRP-280





  • Omni‑directional pyroelectric infrared sensor
  • Digital data control ambient light sensor built-in
  • 2‑way IR remote programmable sensor setting
  • Hybrid switching for controlling loads with HIC
  • SmartDIM or multi-level high/low dim control
  • Remote programmable SmartDIM level setting
  • Up to 10m of remote programmable range
  • 120/277 VAC universal line voltage powered
  • Beeping or light flashing acknowledgment
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Switching Control
    LRD‑309S PIR 120/277 VAC SLV+AO Remote Wire leads Hybrid Multi‑mode, multi‑level SmartDIM control
     Purchase lens seperately
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)

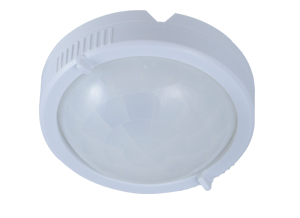

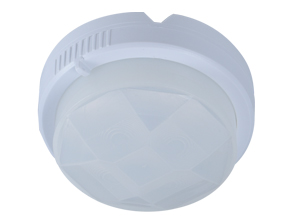

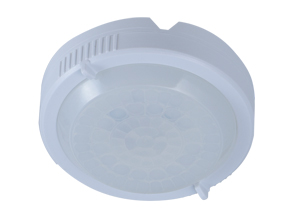

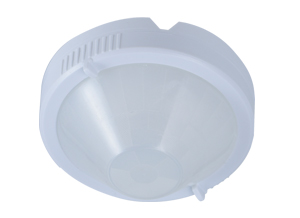

Lens Options Code Coverage
Standard
Cone
a

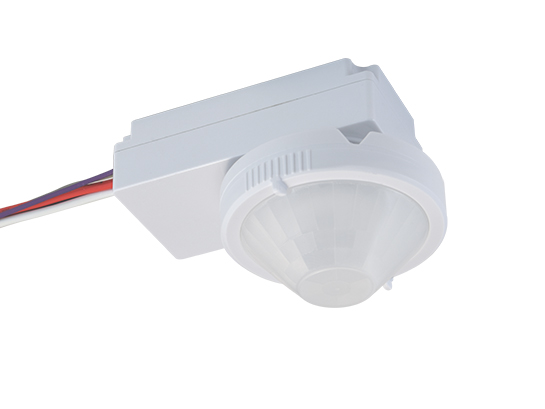

Extra Wide
Cone
b
High Bay
Cone
c

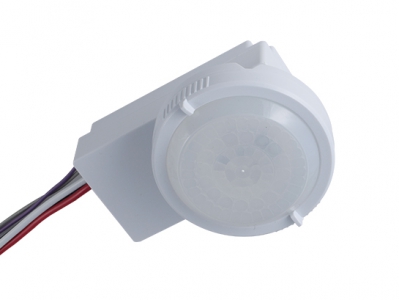

Standard
Flat Round
d

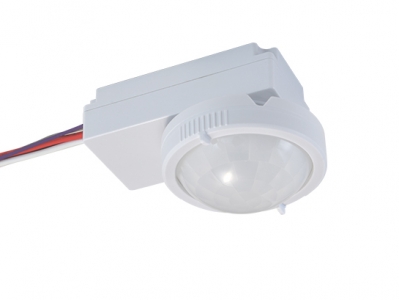

Extra Wide
Dome
f

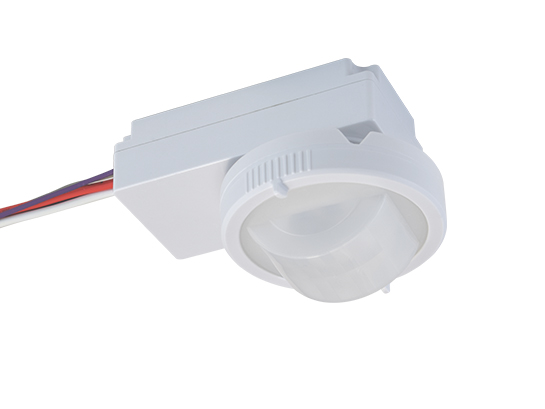

Aisle Way
Arch
(Not for IP-66)
g

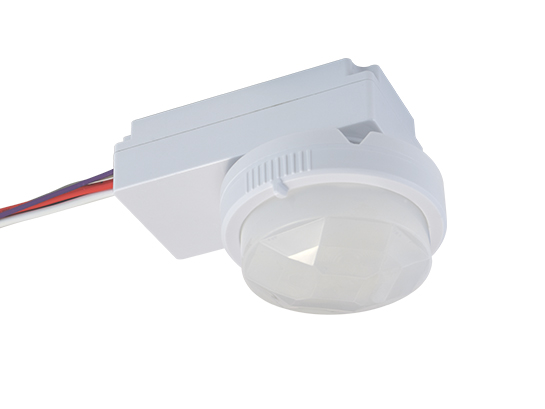

High Bay
Dome
h

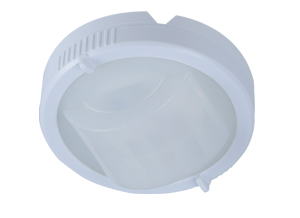

Long Aisle
Arch
(Not for IP-66)
l


Product Information
LRD-309S Datasheet
LRD-309S Installation Instruction
Lens Installation Instruction

  • Omni‑directional pyroelectric infrared sensor
  • Digital data control ambient light sensor built-in
  • 2‑way IR remote programmable sensor setting
  • Hybrid switching for controlling loads with HIC
  • SmartDIM or multi-level high/low dim control
  • Remote programmable SmartDIM level setting
  • Up to 10m of remote programmable range
  • 120/277 VAC universal line voltage powered
  • Beeping or light flashing acknowledgment
  • Available with interchangeable lens options

    Models Tech ALS Power Output Setting Wiring Switching Control
    LRD‑309S PIR 120/277 VAC SLV+AO Remote Wire leads Hybrid Multi‑mode, multi‑level SmartDIM control
     Purchase lens seperately
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)

Lens Options Code Coverage
Standard
Cone
a
Extra Wide
Cone
b
High Bay
Cone
c
Standard
Flat Round
d
Extra Wide
Dome
f
Aisle Way
Arch
(Not for IP-66)
g
High Bay
Dome
h
Long Aisle
Arch
(Not for IP-66)
l



Product Information
LRD-309S Datasheet
LRD-309S Installation Instruction
Lens Installation Instruction
