IR-TEC International Ltd.

LRD‑309SP Series

Line Voltage SmartDIM Occupancy Sensor

The LRD‑309SP series of the TRANS‑PIR sensor family are two‑way IR remote programmable line voltage switching occupancy sensors with 0‑10V output for dimmable ballast or LED driver control. The sensor is capable of providing top‑notch energy efficient lighting control in multiple modes with fully programmable multi‑level high/low dim or SmartDIM continuous dimming control.

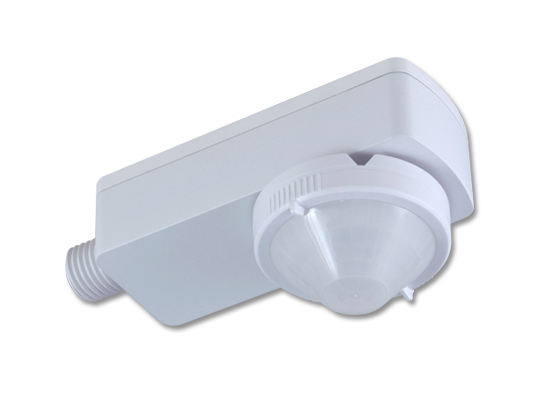

This batten mount sensor can be externally assembled with an OEM luminaires through a 1/2" hole. The LRD‑309SP series are available with interchangeable lenses.

Programming Tool - SRP-280

Omni‑directional pyroelectric infrared sensor
Digital data control ambient light sensor built-in
2‑way IR remote programmable sensor setting
Hybrid switching for controlling loads with HIC
SmartDIM or multi-level high/low dim control
Remote programmable SmartDIM level setting
Up to 10m of remote programmable range
120/277 VAC universal line voltage powered
Beeping or light flashing acknowledgment
Ideal for linear, batten mount or IP-66 luminaires

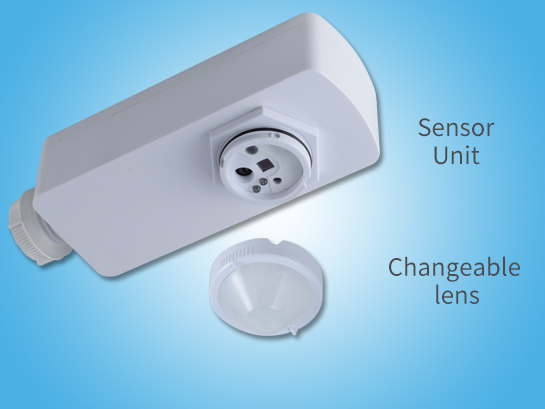

Available with interchangeable lens options

Models	Tech	ALS	Power	Output	Setting	Wiring	Switching	Control
LRD‑309SP	PIR	●	120/277 VAC	SLV+AO	Remote	Wire leads	Hybrid	Multi‑mode, multi‑level SmartDIM control
Purchase lens seperately

LEGENDS:
PIR - Passive infrared SLV - Switched line voltage AO - Analog output (0‑10V)

Lens Options	Code	Coverage
Standard Cone	a
Extra Wide Cone	b
High Bay Cone	c
Standard Flat Round	d
Extra Wide Dome	f
Aisle Way Arch (Not for IP-66)	g
High Bay Dome	h
Long Aisle Arch (Not for IP-66)	l

Product Information

LRD-309SP Datasheet
LRD-309SP Installation Instruction
Lens Installation Instruction

Features

Omni‑directional pyroelectric infrared sensor
Digital data control ambient light sensor built-in
2‑way IR remote programmable sensor setting
Hybrid switching for controlling loads with HIC
SmartDIM or multi-level high/low dim control
Remote programmable SmartDIM level setting
Up to 10m of remote programmable range
120/277 VAC universal line voltage powered
Beeping or light flashing acknowledgment
Ideal for linear, batten mount or IP-66 luminaires
Available with interchangeable lens options

Series Available

Models	Tech	ALS	Power	Output	Setting	Wiring	Switching	Control
LRD‑309SP	PIR	●	120/277 VAC	SLV+AO	Remote	Wire leads	Hybrid	Multi‑mode, multi‑level SmartDIM control
Purchase lens seperately

LEGENDS:
PIR - Passive infrared SLV - Switched line voltage AO - Analog output (0‑10V)

Lens Options

Lens Options	Code	Coverage
Standard Cone	a
Extra Wide Cone	b
High Bay Cone	c
Standard Flat Round	d
Extra Wide Dome	f
Aisle Way Arch (Not for IP-66)	g
High Bay Dome	h
Long Aisle Arch (Not for IP-66)	l
