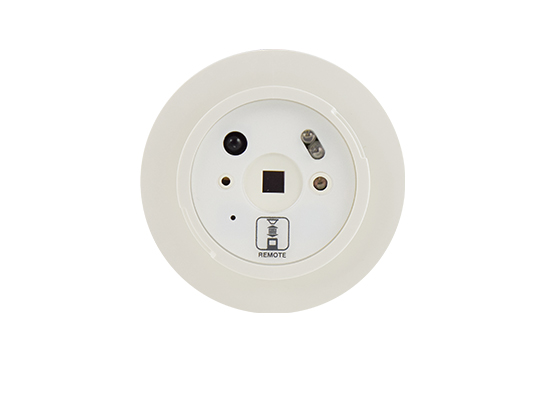

LRD‑5xx Series

Line Voltage SmartDIM Occupancy Sensor

The LRD type of the TRANS‑PIR sensor family are two‑way IR remote programmable line voltage switching occupancy sensors with 0‑10V output for dimmable ballast or LED driver control. The sensor is capable of providing top‑notch energy efficient lighting control in multiple modes with fully programmable multi‑level high/low dim or SmartDIM continuous dimming control.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.

Programming Tool - SRP-280





  • Omni‑directional pyroelectric infrared sensor
  • Digital data control ambient light sensor built‑in
  • 2‑way IR remote programmable sensor setting
  • Hybrid switching for controlling loads with HIC
  • SmartDIM or multi‑level high/low dim control
  • Remote programmable SmartDIM level setting
  • Up to 30 ft of remote programmable range
  • 100‑277 VAC universal line voltage powered
  • Beeping or light flashing acknowledgement
  • Available with variety of mounting options
  • Available with interchangeable lens options
    Models Tech ALS Power Output Setting Wiring Switching Control
    LRD‑509S a b PIR 100‑277 VAC SLV+AO Remote Wire leads Hybrid Multi‑mode, multi‑level SmartDIM control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)
Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500

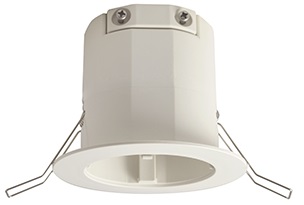

Ceiling Recess L LMB‑500


Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L


Product Information
LRD-509 Datasheet
LRD-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols

  • Omni‑directional pyroelectric infrared sensor
  • Digital data control ambient light sensor built‑in
  • 2‑way IR remote programmable sensor setting
  • Hybrid switching for controlling loads with HIC
  • SmartDIM or multi‑level high/low dim control
  • Remote programmable SmartDIM level setting
  • Up to 30 ft of remote programmable range
  • 100‑277 VAC universal line voltage powered
  • Beeping or light flashing acknowledgement
  • Available with variety of mounting options
  • Available with interchangeable lens options

    Models Tech ALS Power Output Setting Wiring Switching Control
    LRD‑509S a b PIR 100‑277 VAC SLV+AO Remote Wire leads Hybrid Multi‑mode, multi‑level SmartDIM control
     a - mount code     b - lens code
LEGENDS:
PIR - Passive infrared     SLV - Switched line voltage     AO - Analog output (0‑10V)

Mounting Options Code Bracket #
Fixture Integrated F --
IP‑66 Fixture Integrated W --
Fixture External E EMB‑500
IP‑66 Fixture External P PMB‑500
Ceiling Surface S SMB‑500
Junction Box C CMB‑500
Ceiling Recess L LMB‑500



Lens Options Code Coverage
Standard
Cone
A
Extra Wide
Cone
B
High Bay
Cone
C
Standard
Flat Round
D
Extra Wide
Dome
F
Aisle Way
Arch
(Not for IP-66)
G
High Bay
Dome
H
Long Aisle
Arch
(Not for IP-66)
L



Product Information
LRD-509 Datasheet
LRD-509 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction
Design tools
CAD Symbols
