MOD‑5xx Series

DALI Occupancy Sensor

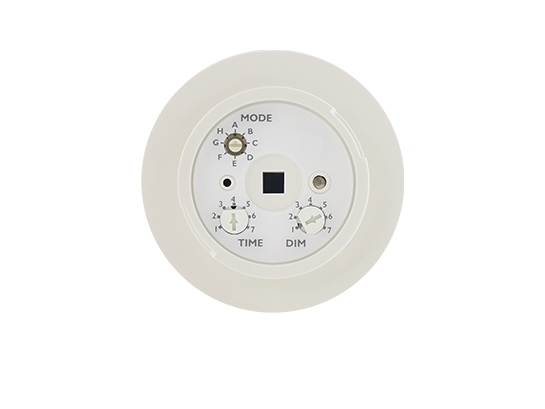

The MOD type of the TRANS‑PIR sensor family is a DALI occupancy sensor featuring multi‑mode bi‑level control for lighting with DALI driver or ballast.

All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.

Omni‑directional pyroelectric infrared sensor
Available with line voltage or DALI bus power
DALI broadcast command for multi-driver control
Walk test and sensor operation LED indicator
Programmable ALS to inhibit daytime lighting
Rotary DIP switch selectable control modes
Accu‑Set potentiometer delay time and DIM setting
Provides DALI bus power supply up to 100 mA
Available with variety of mounting options
Available with interchangeable lens options

Models	Tech	ALS	Power	Output	Setting	Wiring	Control
MOD‑510S a b	PIR	●	100‑277 VAC or DALI bus power	DALI broadcast	Accu‑Set pot Rotary DIP	Terminal Block	Multi‑mode, bi‑level StepDIM control
a - mount code b - lens code

LEGENDS:
PIR - Passive infrared

Mounting Options	Code	Bracket #
Fixture Integrated	F	--
IP‑66 Fixture Integrated	W	--
Fixture External	E	EMB‑500
IP‑66 Fixture External	P	PMB‑500
Ceiling Surface	S	SMB‑500
Junction Box	C	CMB‑500
Ceiling Recess	L	LMB‑500

Lens Options	Code	Coverage
Standard Cone	A
Extra Wide Cone	B
High Bay Cone	C
Standard Flat Round	D
Extra Wide Dome	F
Aisle Way Arch (Not for IP-66)	G
High Bay Dome	H
Long Aisle Arch (Not for IP-66)	L

Product Information

MOD-510 Datasheet
MOD-510 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction

Design tools

CAD Symbols

Features

Omni‑directional pyroelectric infrared sensor
Available with line voltage or DALI bus power
DALI broadcast command for multi-driver control
Walk test and sensor operation LED indicator
Programmable ALS to inhibit daytime lighting
Rotary DIP switch selectable control modes
Accu‑Set potentiometer delay time and DIM setting
Provides DALI bus power supply up to 100 mA
Available with variety of mounting options
Available with interchangeable lens options

Series Available

Models	Tech	ALS	Power	Output	Setting	Wiring	Control
MOD‑510S a b	PIR	●	100‑277 VAC or DALI bus power	DALI broadcast	Accu‑Set pot Rotary DIP	Terminal Block	Multi‑mode, bi‑level StepDIM control
a - mount code b - lens code

LEGENDS:
PIR - Passive infrared

Mounting Options

Mounting Options	Code	Bracket #
Fixture Integrated	F	--
IP‑66 Fixture Integrated	W	--
Fixture External	E	EMB‑500
IP‑66 Fixture External	P	PMB‑500
Ceiling Surface	S	SMB‑500
Junction Box	C	CMB‑500
Ceiling Recess	L	LMB‑500

Lens Options

Lens Options	Code	Coverage
Standard Cone	A
Extra Wide Cone	B
High Bay Cone	C
Standard Flat Round	D
Extra Wide Dome	F
Aisle Way Arch (Not for IP-66)	G
High Bay Dome	H
Long Aisle Arch (Not for IP-66)	L

Download

Product Information

MOD-510 Datasheet
MOD-510 Installation Instruction
Mounting Options Datasheet
Mounting Installation Instruction
Lens Options Datasheet
Lens Installation Instruction

Design tools

CAD Symbols
